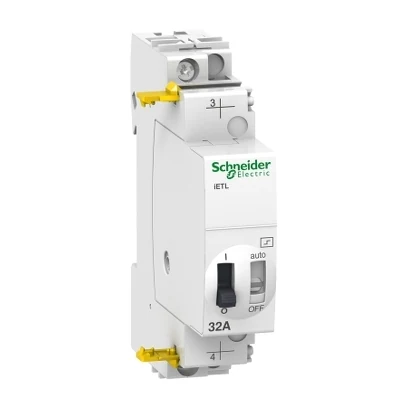

Schneider Electric A9C32836 iETL Impulse Relays, 32A 1P 230VAC/110VDC
- Brand: Schneider Electric
- SKU: A9C32836
- MPN: A9C32836
- Price: 1205.90 TRY + VAT · incl. VAT 1447.08 TRY
- Availability: Made to order
- Step and Impulse Relays
- Schneider Electric Step and Impulse Relays
- Selection guide: Step and Impulse Relays Selection Guide: Technical Criteria & Application Standards
- Schneider Electric A9C32836 Teknik Veri Föyü (PDF)
Schneider Electric A9C32836 iETL Impulse Relays, 32A 1P 230VAC/110VDC.
| Series | Acti9 |
|---|---|
| Product Type | Darbe rölesi için uzatma |
| Relay Application | Uzaktan kumanda |
| Pole Arrangement | 1P |
| Power Pole Contact Arrangement | 1 NA |
| Rated Current (In) | 32 A |
| Current Type | AC |
| Mains Frequency | 50/60 Hz |
| Rated Operational Voltage (Ue) | 415 V AC 50/60 Hz |
| Control Type | Geçiş; Uzaktan kumanda |
| Control Signal Type | Darbe |
| Switching Frequency | 5 anahtarlama işlemi/dakika |
| Impulse Duration | 50 ms |
| Remote Control Type | Işıklı basmalı düğme 3 mA |
| On-device Signalling | AÇIK/KAPALI göstergesi |
| Rated Control Circuit Voltage (Uc) | 230…240 V AC 50/60 Hz; 110 V DC |
| Mounting Type | Sabit, TL'nin sağ tarafında |
| Mounting Support | 35 mm simetrik DIN rayı |
| Number of 9 mm Pitches | 2 |
| Height | 60 mm |
| Width | 18 mm |
| Depth | 84 mm |
| Color | White |
| Electrical Endurance | AC-21: 50000 cycles; AC-22: 20000 cycles |
| Connection Terminals | Tünel tipi terminaller - <= 10 mm² |
| Compatible Series | Acti9 İTL |
| Compatible Products | ITL 32A |
| Standards | EN 669-1; EN 669-2-2 |
| Noise Level | 60 dB |
| IP Rating | IP20 |
| Pollution Degree | 3 |
| Tropical Climate Resistance | 2 (IEC 60068-1) |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -20…50 °C |
| Storage Temperature | -40…70 °C |
