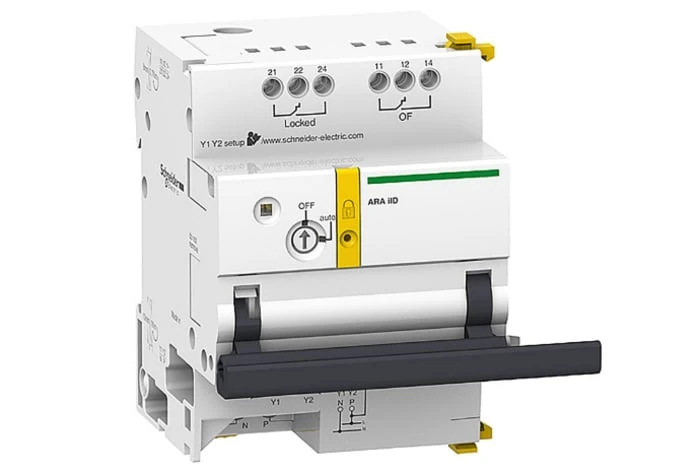

Schneider Electric A9C70342 Acti 9-ARA Automatic Reclosing Modules, ARA iID
- Brand: Schneider Electric
- SKU: A9C70342
- MPN: A9C70342
- Price: 11694.29 TRY + VAT · incl. VAT 14033.15 TRY
- Availability: Made to order
- Residual Current Circuit Breakers (RCCB)
- Schneider Electric Residual Current Circuit Breakers (RCCB)
- Selection guide: Residual Current Devices Selection Guide
- Schneider Electric A9C70342 Teknik Veri Föyü (PDF)
Schneider Electric A9C70342 Acti 9-ARA Automatic Reclosing Modules, ARA iID. Technical specifications of this model: Series: Acti 9
| Series | Acti9 |
|---|---|
| Product Type | Otomatik yeniden kapatma cihazı yardımcısı |
| Signalling Contact Arrangement | 2 OF gerilimsiz kontaklar |
| Signalling Circuit Voltage | 24 V 10 mA AC/DC; 230 V 1 A AC |
| Control Type | Otomatikleşmenin engellenmesi sürekli 230 V AC 50/60 Hz; Kesin yeniden kapatma darbe 230 V AC 50/60 Hz |
| Input current | 5 mA |
| Impulse Duration | >= 200 ms kontrol devresi |
| Response Time | < 500 ms |
| Rated Control Supply Voltage (Us) | 230 V AC 50/60 Hz |
| Power Consumption | 2 W |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | NA |
| Number of 9 mm Pitches | 7 |
| Height | 93 mm |
| Width | 63 mm |
| Depth | 75.5 mm |
| Product Weight | 440 g |
| Color | White |
| Electrical Endurance | 5000 cycles |
| Locking Option | Kilitlenebilir |
| Cable Stripping Length | Güç besleme: 10 mm for alt connection; Giriş: 10 mm for alt connection; Çıkış: 8 mm for üst connection |
| Tightening Torque | Güç besleme: 1 N.m; Giriş: 1 N.m; Çıkış: 0,7 N.m |
| Compatible Series | Acti9 iID Kaçak akım devre kesicisi (RCCB) |
| Compatible Products | 2P iID |
| IP Rating | IP20 (IEC 60529); IP40 (modüler muhafaza) (IEC 60529) |
| Pollution Degree | 3 (IEC 60947) |
| Overvoltage category | II |
| Tropical Climate Resistance | 2 |
| Relative Humidity | 93 % @ 40 °C |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…60 °C |
