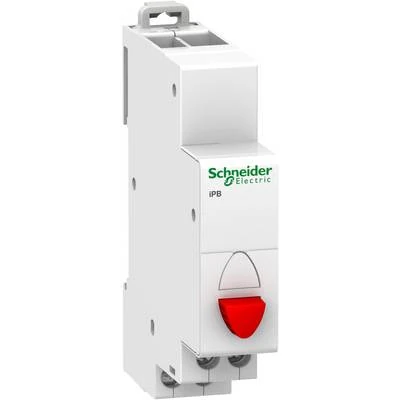

Schneider Electric A9E18031 iPB 1NC Contact Single Push Button, Single, Red
- Brand: Schneider Electric
- SKU: A9E18031
- MPN: A9E18031
- Price: 1189.83 TRY + VAT · incl. VAT 1427.80 TRY
- Availability: Made to order
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric A9E18031 Teknik Veri Föyü (PDF)
Schneider Electric A9E18031 iPB 1NC Contact Single Push Button, Single, Red. Technical specifications of this model: Color: Red Contact Arrangement: 1NC
| Contact Arrangement | 1NC |
|---|---|
| Color | Red |
| Series | Acti9 |
| Product Type | Push-buton |
| Standards | IEC 60669-1; IEC 60947-5-1 |
| Rated Operational Current (Ie) | 20 A |
| Rated Operational Voltage (Ue) | 250 V AC |
| Control Type | 1 açma/kapama butonu kırmızı |
| Mounting Type | Fixed |
| Mounting Support | 35 mm simetrik DIN rayı |
| Comb Busbar Compatibility | Yukarı doğru: Clario; Yukarı doğru: Librio; Yukarı doğru: ProDis |
| Number of 9 mm Pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 71.5 mm |
| Electrical Endurance | AC-22: 30000 cycles AC 50/60 Hz |
| Cable Stripping Length | 9 mm |
| Tightening Torque | 1 N.m |
| Tropical Climate Resistance | 2 |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -40…80 °C |
