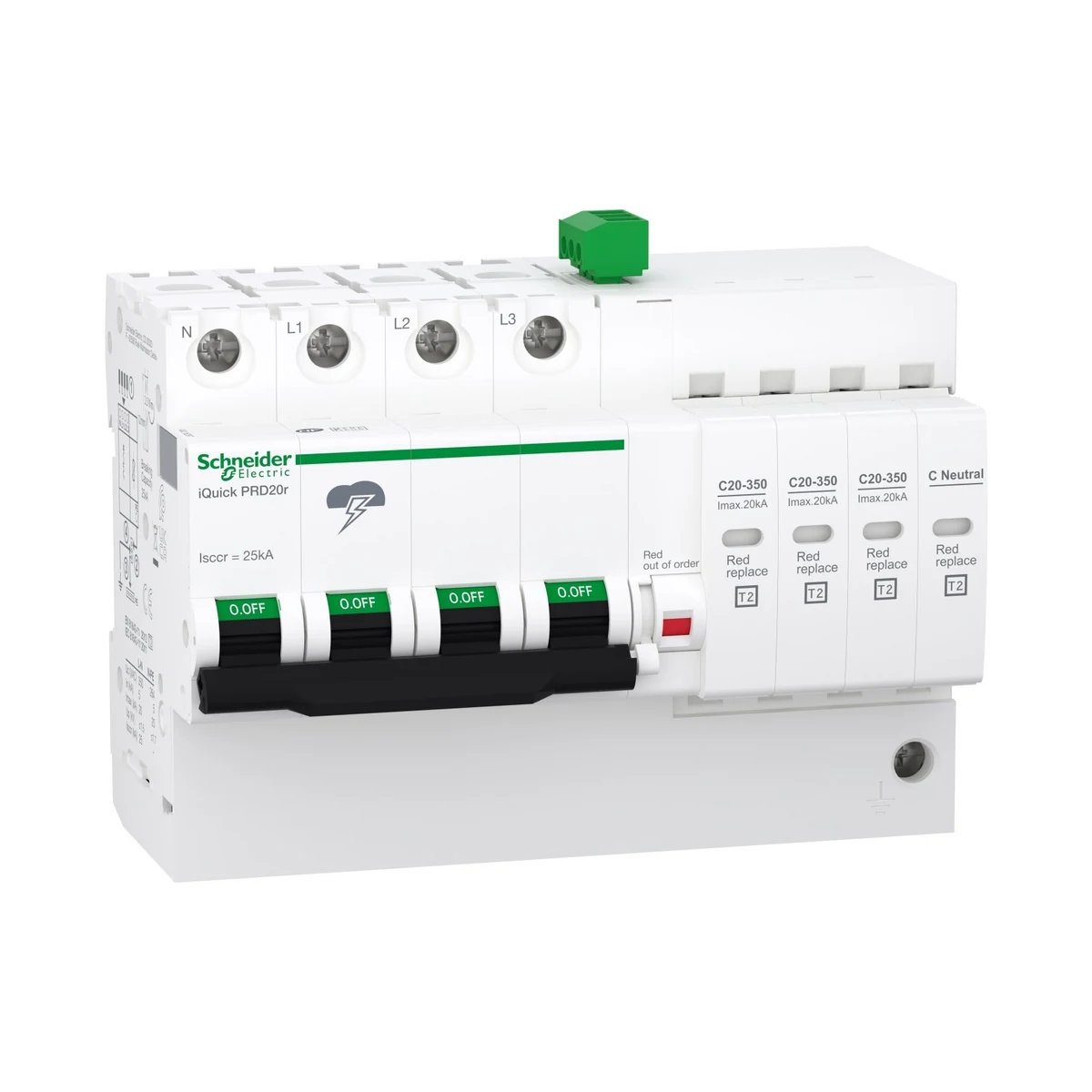

Schneider Electric A9L16297 iQuick PRD20r 3P+N
- Brand: Schneider Electric
- SKU: A9L16297
- MPN: A9L16297
- Price: 20627.49 TRY + VAT · incl. VAT 24752.99 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric A9L16297 Teknik Veri Föyü (PDF)
Schneider Electric A9L16297 iQuick PRD20r 3P+N. Technical specifications of this model: Remote Signaling: Yes Series: IQUICK PRD Storage Temperature: -40…70 °C Mounting Style: Snap-on (DIN rail) IK Protection Class: IK05 CONFORMING TO IEC 62262 Color: White (RAL 9003) Surge Arrester Technology: MOV + GDT Product Family: Acti9 Surge Arrester Class: TYPE 2 Depth: 75.9 mm Short Device Name: iQuick PRD20r Earthing System: TTTN-S Pole arrangement: 3P + N Operating Altitude: 2000 M Product Type: Surge arrester with removable cartridge Maximum Voltage Protection Level (Up): COMMON MODE 1.5 KV TYPE 2 L/PE COMMON MODE 1.5 KV TYPE 2 N/PE DIFFERENTIAL MODE 1.5 KV TYPE 2 L/N Product Weight: 0.84 kg Relative Humidity: 5…95 % PVC-Free Declaration: Yes Manufacturer Standard Declaration: EN 61643-11:2012IEC 61643-11:2011 Tightening Torque: 2.5 N.M Signal Circuit Voltage: 2 A/250 V AC 50/60 Hz Signal Contact Arrangement: 1 SD (1 C/O) Connection Terminals: Tunnel terminal (bottom) 2.5…25 mm²; Tunnel terminal (top) 2.5…25 mm² Manufacturer Quality Mark Declaration: KEMA-KEURNF Manufacturer Certificate Declaration: CE Operating Ambient Temperature: -25…60 °C Nominal Discharge Current: COMMON MODE: 5 KA (L/PE) COMMON MODE: 5 KA (N/PE) DIFFERENTIAL MODE: 5 KA (L/N) Toxic Heavy Metal-Free Declaration: ✓ Rated Operational Voltage: 230/400 V AC (+/- 10 %) AT 50/60 Hz Number of 9 mm Module Pitches: 14.6 Silicone-Free Declaration: No Device Application: DISTRIBUTION Width: 131.5 mm Compatibility Code: IQUICK PRD20R Halogen-Free Material Status: Product with halogen-free plastic parts Maximum Continuous Operating Voltage (Uc): COMMON MODE: 264 V N/PE COMMON MODE: 350 V L/PE DIFFERENTIAL MODE: 350 V L/N Surge Arrester Type: ELECTRICAL DISTRIBUTION NETWORK Maximum Discharge Current: COMMON MODE: 20 KA L/PE COMMON MODE: 20 KA N/PE DIFFERENTIAL MODE: 20 KA L/N Manufacturer Product Name: ACTI9 IQUICK PRD Isolating Device Type: Integrated circuit breaker - ICU 25 kA Height: 94 mm
| 9 mm Module Pitch Count | 14.6 |
|---|---|
| Rated Operational Voltage | 230/400 V AC (+/- 10 %) AT 50/60 Hz |
| Nominal Discharge Current | COMMON MODE: 5 KA (L/PE)COMMON MODE: 5 KA (N/PE)DIFFERENTIAL MODE: 5 KA (L/N) |
| Isolating Device Type | Entegre devre kesici - ICU 25 kA |
| Relative Humidity | 5…95 % |
| Connection Terminals | Tünel tipi terminal (alt) 2.5…25 mm²; Tünel tipi terminal (üst) 2.5…25 mm² |
| Operating Ambient Temperature | -25…60 °C |
| Operating Altitude | 2000 m |
| Device Application | DISTRIBUTION |
| Storage Temperature | -40…70 °C |
| Depth | 75.9 mm |
| Width | 131.5 mm |
| Halogen-Free Material Status | Halojensiz plastik parçalı ürün |
| IK Protection Class | IK05 CONFORMING TO IEC 62262 |
| Short Device Name | iQuick PRD20r |
| Pole Arrangement | 3P+N |
| Maximum Discharge Current | COMMON MODE: 20 KA L/PECOMMON MODE: 20 KA N/PEDIFFERENTIAL MODE: 20 KA L/N |
| Maximum Voltage Protection Level (Up) | COMMON MODE 1.5 KV TYPE 2 L/PECOMMON MODE 1.5 KV TYPE 2 N/PEDIFFERENTIAL MODE 1.5 KV TYPE 2 L/N |
| Maximum Continuous Operating Voltage (Uc) | COMMON MODE: 264 V N/PECOMMON MODE: 350 V L/PEDIFFERENTIAL MODE: 350 V L/N |
| Mounting Style | Geçmeli (DIN ray) |
| Surge Arrester Class | TYPE 2 |
| Surge Arrester Technology | MOV + GDT |
| Surge Arrester Type | ELECTRICAL DISTRIBUTION NETWORK |
| PVC-Free Declaration | Yes |
| Color | White (RAL 9003) |
| Series | IQuick PRD |
| Tightening Torque | 2,5 N.m |
| Silicone-Free Declaration | No |
| Signal Circuit Voltage | 2 A/250 V AC 50/60 Hz |
| Signal Contact Arrangement | 1 SD (1 C/O) |
| Toxic Heavy Metal-Free Declaration | ✓ |
| Earthing System | TTTN-S |
| Manufacturer Quality Mark Declaration | KEMA-KEURNF |
| Manufacturer Certificate Declaration | CE |
| Manufacturer Standard Declaration | EN 61643-11:2012IEC 61643-11:2011 |
| Manufacturer Product Name | ACTI9 IQUICK PRD |
| Product Weight | 0.84 kg |
| Product Family | Acti9 |
| Product Type | Çıkarılabilir kartuşlu parafudr |
| Compatibility Code | IQUICK PRD20R |
