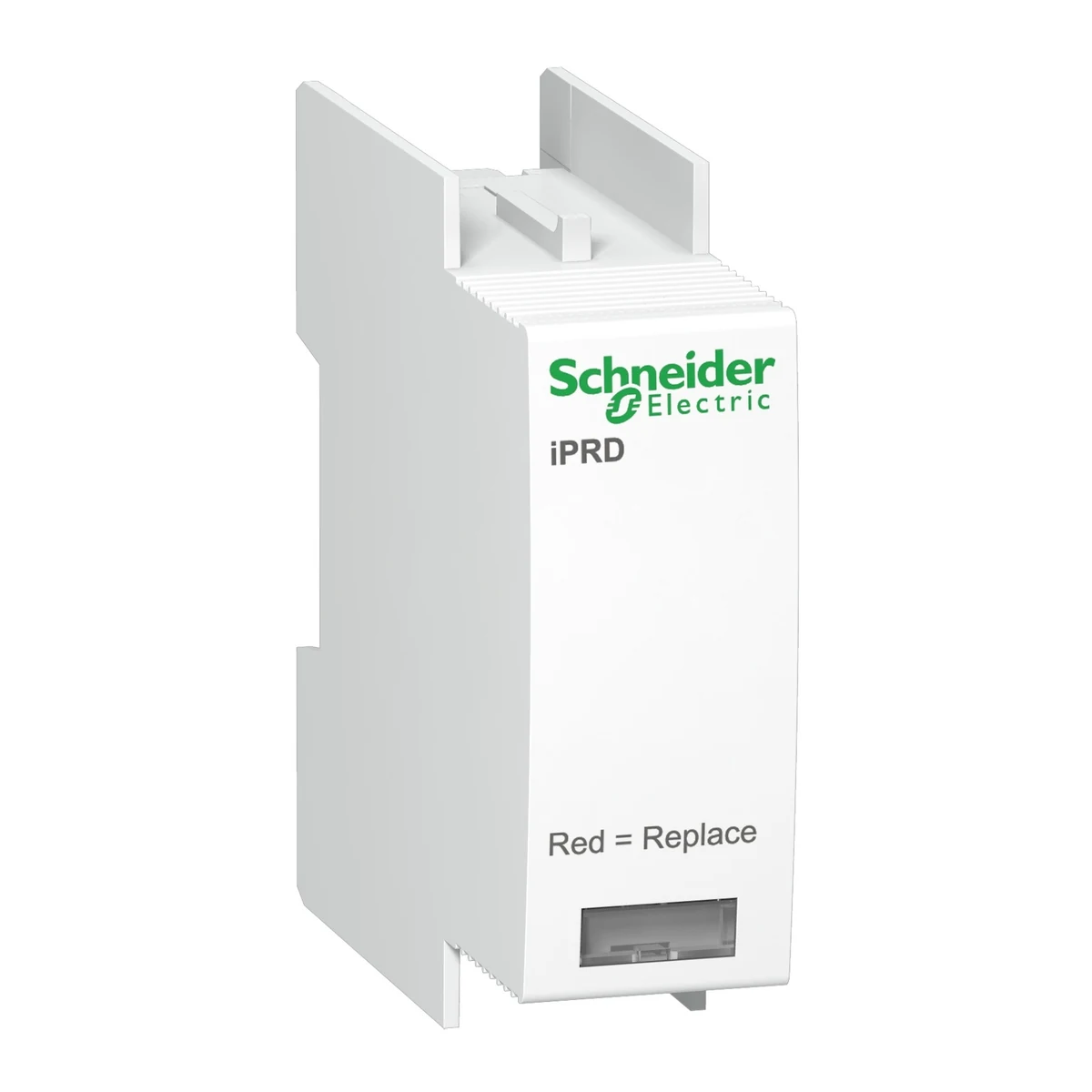

Schneider Electric A9L65102 High Voltage Protection IPRD for Cartridge C65 – 350
- Brand: Schneider Electric
- SKU: A9L65102
- MPN: A9L65102
- Price: 2752.19 TRY + VAT · incl. VAT 3302.63 TRY
- Availability: Made to order
- Low Voltage Surge Arresters
- Schneider Electric Low Voltage Surge Arresters
- Selection guide: What Is a Surge Arrester? Types and Selection Guide
- Schneider Electric A9L65102 Teknik Veri Föyü (PDF)
Schneider Electric A9L65102 High Voltage Protection IPRD for Cartridge C65 – 350.
| Series | Acti9 |
|---|---|
| Product Type | Kartuş |
| Compatible Series | Acti9 İPRD65r |
| Surge Arrester Application | Elektrikli dağıtım ağı |
| Standards | EN 61643-11; IEC 61643-11: 2011 |
| Quality Labels | CE |
| Surge Arrester Class | Tip 2 |
| Surge Arrester Technology | TAŞI |
| Earthing System | TN; TT |
| Rated Operational Voltage (Ue) | 230 V AC 50 Hz |
| Nominal Discharge Current (In) | 20 kA |
| Maximum Discharge Current (Imax) | 65 kA |
| Maximum Continuous Operating Voltage (Uc) | 350 V |
| Local Signalling | Bayrak (beyaz/kırmızı) |
| Mounting Type | Takılabilir |
| Mounting Support | SPD modülü içine |
| Number of 9 mm Pitches | 2 |
| Height | 57 mm |
| Width | 18 mm |
| Depth | 56 mm |
| Product Weight | 0.075 kg |
| Color | White (RAL 9003) |
| Material | PBT (polibütilen tereftalat) |
| Response Time | < 25 ns |
| IP Rating | IP20 ön yüz |
| Relative Humidity | 5…90 % |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
