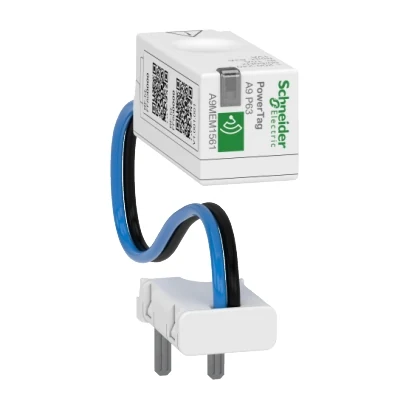

Schneider Electric A9MEM1561 Wireless energy sensor for top mounting on miniature circuit breaker
- Brand: Schneider Electric
- SKU: A9MEM1561
- MPN: A9MEM1561
- Price: 10897.54 TRY + VAT · incl. VAT 13077.05 TRY
- Availability: Made to order
- Electric Energy Meters
- Selection guide: What Is an Electricity Meter? Energy Meter Selection Guide
- Schneider Electric A9MEM1561 Teknik Veri Föyü (PDF)
Schneider Electric A9MEM1561 Wireless energy sensor for top mounting on miniature circuit breaker.
| Series | PowerLogic |
|---|---|
| Product Type | Enerji sensörü |
| Pole Arrangement | 1P+N |
| Maximum Current (Imax) | 63 A |
| Basic Current (Ib) | 10 A |
| Starting Current | 40 mA |
| Saturation Current | 130 A |
| Application | Aşırı load alarmı; Maliyet bölüşümü; load izleme; Devre izleme; Adım |
| Measurement Type | Gerilim; Aktif enerji; Akım; Etkin güç; Güç faktörü |
| Mounting Position | Üst |
| Mounting Support | Devre kesicide |
| Connection Range | 9 mm Ph/N |
| Intended Field of Application | Pano |
| Transmission Medium | Radyo frekansı 2,4…2,4835 GHz (IEEE 802.15.4) |
| Maximum Emission Power | 10 mW |
| Mounting Method | Vidalarla (terminaller) |
| Electrical Connection (Voltage Sensing and Power Supply) | Konnektör diş |
| Cable Cross-Section | 1 sert cable 1,5…16 mm²; 2 sıkışık cable 1,5…2,5 mm²; 2 sert cable 1,5…2,5 mm²; 1 sıkışık cable 1,5…16 mm² |
| Supply Voltage | 200…240 V AC, +/- %20 |
| Mains Frequency | 50 Hz; 60 Hz |
| Maximum Power Consumption | 1 VA |
| Standards | IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1 |
| Certifications | IEC; DNV Marine |
| Height | Sensör öğesi: 20 mm; Taban birimi: 8 mm |
| Width | Sensör öğesi: 18 mm; Taban birimi: 18 mm |
| Depth | Sensör öğesi: 44,5 mm; Taban birimi: 28 mm |
| Product Weight | 18 g |
| Color | White (RAL 9003) |
| Quality Labels | CE |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
| Overvoltage category | III (IEC 61010-1) |
| Measurement Category | Kategori III (IEC 61010-2-030) |
| IP Rating | IP20 |
| IK Impact Protection | IK05 |
| Pollution Degree | 3 |
| Relative Humidity | 0…95 % @ 45 °C (IEC 60721-3-3) |
| Vibration Resistance | 3M4 (IEC 60721-3-3) |
| Environmental Conditions | Toz geçirmez sınıf 3S3 (IEC 60721-3-3); Tuz buharı class 3C2 (IEC 60721-3-3); İç mekan kullanımı |
