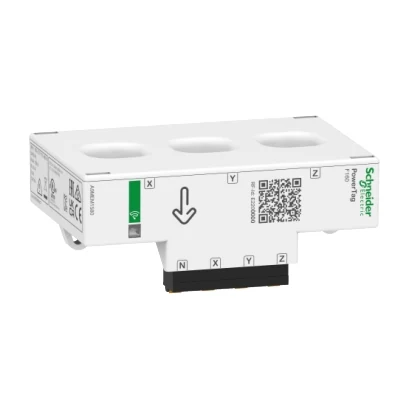

Schneider Electric A9MEM1580 Wireless energy sensor for top/bottom mounting on miniature circuit breaker
- Brand: Schneider Electric
- SKU: A9MEM1580
- MPN: A9MEM1580
- Price: 17680.71 TRY + VAT · incl. VAT 21216.85 TRY
- Availability: Made to order
- Electric Energy Meters
- Selection guide: What Is an Electricity Meter? Energy Meter Selection Guide
- Schneider Electric A9MEM1580 Teknik Veri Föyü (PDF)
Schneider Electric A9MEM1580 Wireless energy sensor for top/bottom mounting on miniature circuit breaker.
| Series | PowerLogic |
|---|---|
| Product Type | Enerji sensörü |
| Pole Arrangement | 3P; 3P+N |
| Maximum Current (Imax) | 160 A |
| Basic Current (Ib) | 25 A |
| Starting Current | 100 mA |
| Saturation Current | 320 A |
| Application | Adım; Aşırı load alarmı; Güç faktörü; load izleme; Devre izleme |
| Compatible Products | EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Gelişmiş; Harmony Hub; Acti9 PowerTag Link; Acti9 PowerTag Link HD |
| Measurement Type | Aktif ve reaktif enerji; Görünen enerji; Aktif ve reaktif güç; Görünen güç; Akım; Gerilim; Güç faktörü; Dahili sıcaklık; Frekans |
| Mounting Position | Üst veya alt |
| Mounting Support | Kablolar |
| Connection Range | 27 mm |
| Intended Field of Application | Pano |
| Transmission Medium | Radyo frekansı 2,4…2,4835 GHz (IEEE 802.15.4) |
| Maximum Emission Power | 10 mW |
| Mounting Method | Serbest montaj |
| Electrical Connection (Voltage Sensing and Power Supply) | Çıkarılabilir yaylı terminal bloğu |
| Cable Cross-Section | 1 sert cable 0,2…1,5 mm² kablo uçsuz; 1 sıkışık cable 0,2…2,5 mm² kablo uçsuz; 1 sıkışık cable 0,25…1,5 mm² ile |
| Cable Stripping Length | 11 mm |
| Supply Voltage | 100…277 V AC, +/- %20, fazdan nötre; 173…480 V AC, +/- %20, faz-faz |
| Mains Frequency | 50 Hz; 60 Hz |
| Maximum Power Consumption | 3 VA |
| Standards | IEC 61557-12; IEC 61010-1; ETSI EN 301 489-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328 |
| Certifications | UL listeli; IEC; DNV Marine |
| Height | 39 mm |
| Width | 91 mm |
| Depth | 62 mm |
| Product Weight | 80 g |
| Color | White (RAL 9003) |
| Quality Labels | CE |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
| Overvoltage category | IV (IEC 61010-1) |
| Measurement Category | Kategori 4. (IEC 61010-2-030) |
| IP Rating | IP20 |
| IK Impact Protection | IK05 |
| Pollution Degree | 3 |
| Relative Humidity | 0…95 % @ 55 °C (IEC 60721-3-3) |
