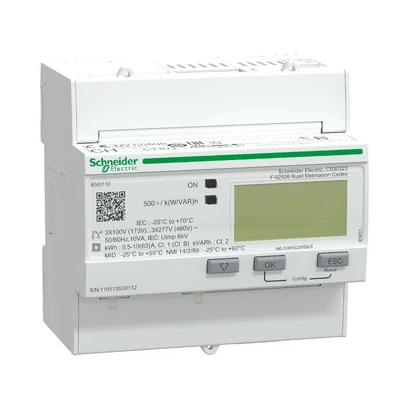

Schneider Electric A9MEM3110 iEM3110, 63A Direct-Connected 3-Phase kWh Meter, Pulse Output
- Brand: Schneider Electric
- SKU: A9MEM3110
- MPN: A9MEM3110
- Price: 14400.32 TRY + VAT · incl. VAT 17280.38 TRY
- Availability: Made to order
- Electric Energy Meters
- Selection guide: What Is an Electricity Meter? Energy Meter Selection Guide
- Schneider Electric A9MEM3110 Teknik Veri Föyü (PDF)
Schneider Electric A9MEM3110 iEM3110, 63A Direct-Connected 3-Phase kWh Meter, Pulse Output. Technical specifications of this model: Manufacturer Product Group: kWh meters
| Manufacturer Product Group | kWH ölçerler |
|---|---|
| Series | Acti9 |
| Product Type | Enerji ölçer |
| Pole Arrangement | 1P+N; 3P; 3P+N |
| Measurement Type | Aktif enerji |
| Device Application | Kısmi ölçüm cihazı; Alt faturalandırma |
| Accuracy Class | Class 1 aktif enerji (IEC 62053-21); Class 1 aktif enerji (IEC 61557-12); Sınıf B aktif enerji (EN 50470-3) |
| Input Type | Doğrudan bağlantı |
| Rated Current (Ir) | 63 A |
| Rated Voltage | 100…277 V; 173…480 V |
| Mains Frequency | 60 Hz; 50 Hz |
| Technology Type | Elektronik |
| Display Type | LCD ekran |
| Sampling Rate | 32 örnek/döngü |
| Measuring Current | 0–63 A |
| Maximum Measured Value | 99999999,9 kWh |
| Communication Protocol | - |
| Communication Port Support | - |
| Local Signalling | Yeşil gösterge ışığı: güç AÇIK; Sarı yanıp sönen LED: doğruluk kontrolü |
| Number of Inputs | 0 |
| Number of Outputs | 1 darbe |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Connection Terminals | Vidalı terminaller 16 mm² kablo(lar) |
| Overvoltage category | III |
| IP Rating | IP40 ön panel: (IEC 60529); IP20 gövde: (IEC 60529) |
| Pollution Degree | 2 |
| Relative Humidity | 5…95 % @ 50 °C |
| Operating Ambient Temperature | -25…55 °C - MID; -25…70 °C - IEC; -25…60 °C - IEC |
| Storage Temperature | -40…85 °C |
| Operating Altitude | < 3000 m |
| Color | White |
| Number of 9 mm Pitches | 10 |
| Width | 90 mm |
| Height | 95 mm |
| Depth | 69 mm |
