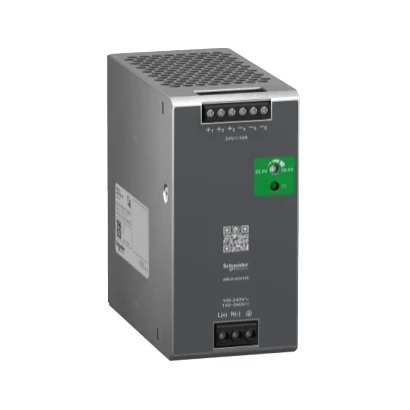

Schneider Electric ABLS1A24100 Power Supply 24 V 10 A 1 Phase Optimized
- Brand: Schneider Electric
- SKU: ABLS1A24100
- MPN: ABLS1A24100
- Price: 17958.70 TRY + VAT · incl. VAT 21550.44 TRY
- Availability: In stock
- DIN Rail Power Supplies
- Schneider Electric DIN Rail Power Supplies
- Selection guide: DIN Rail Power Supplies Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ABLS1A24100 Teknik Veri Föyü (PDF)
Schneider Electric ABLS1A24100 Power Supply 24 V 10 A 1 Phase Optimized.
| Series | Modicon Güç Kaynağı |
|---|---|
| Product Type | Güç besleme |
| Power Supply Type | Düzenlenmiş anahtar modu |
| Housing Material | Aluminum |
| Rated Input Voltage | 100…240 V AC monofaze; 100…240 V AC fazdan faza; 140…340 V DC |
| Rated Power (W) | 240 W |
| Output Voltage | 24 V DC |
| Power Supply Output Current | 10 A |
| Input Voltage Limits | 85…264 V AC sıcaklık nedeniyle güç düşümü olmadan; 120…375 V DC sıcaklık nedeniyle güç düşümü olmadan |
| Mains Frequency | 50–60 Hz |
| Earthing System | TN; TT; IT |
| Maximum Leakage Current | 1 mA 240 V AC |
| Inrush Current | 30,0 A @ 115 V; 60,0 A @ 230 V |
| Efficiency | 85 % @ 115 V AC; 88 % @ 230 V AC |
| Output Voltage Adjustment Range | 22–28 V |
| Power Loss (W) | 36 W |
| Current Consumption | < 2.8 A 115 V AC; < 1.4 A 230 V AC; < 2.4 A 140 V DC |
| Turn-on Time | <1 s |
| Hold-up Time | > 20 ms 115 V AC; > 20 ms 230 V AC |
| Startup with Capacitive Loads | 8000 µF |
| Residual Ripple | < 120 mV |
| Mean Time Between Failures (MTBF) | 700000 h at 25 °C, tam load (SR 332) |
| Line and Load Regulation | < 0.5 % şebeke, 25 °C'de 0 ila 100 % load; < 1 % şebeke, 25 °C'de hattaki tam gerilim aralığı |
| Status LED | 1 LED (yeşil) çıkış gerilimi |
| Depth | 117.6 mm |
| Height | 123.6 mm |
| Width | 60 mm |
| Product Weight | 0.8 kg |
| Output terminal | Paralel; Seri |
| Mounting Support | Silindir şapka tipi TH35-15 ray (IEC 60715); Silindir şapka tipi TH35-7.5 ray (IEC 60715); Double-profile DIN ray |
| Supply | SELV (IEC 60950-1); SELV (IEC 60204-1); SELV (IEC 60364-4-41) |
| Dielectric Strength | 3000 V ACile input to output yalıtım |
| Service Life | 10 yr |
| Overvoltage category | II |
| Certifications | CE; CUL Listelenen; CUL Tanınan; RCM; CB Şeması; EAC; KC |
| Operating Altitude | < 5000 m |
| Shock Resistance | 150 m/s² için 11 ms |
| IP Rating | IP20 |
| Electric Shock Protection Class | Class I |
| Pollution Degree | 2 |
