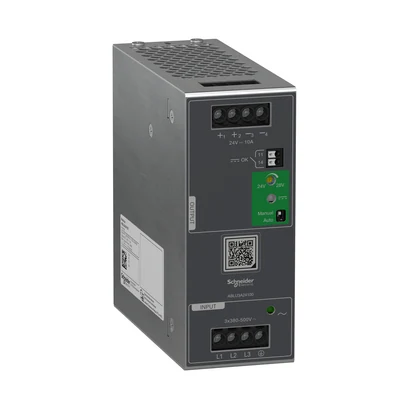

Schneider Electric ABLU3A24100 Power Supply, 380...500 V AC, 3 Phase, 24 V, 10 A

Schneider Electric ABLU3A24100 Power Supply, 380...500 V AC, 3 Phase, 24 V, 10 A

Schneider Electric ABLU3A24100 Power Supply, 380...500 V AC, 3 Phase, 24 V, 10 A.

SeriesModicon Güç Kaynağı
Product TypeGüç besleme
Power Supply TypeDüzenlenmiş anahtar modu
Housing MaterialMetal
Rated Input Voltage380…500 V AC trifaze
Rated Power (W)240 W
Output Voltage24 V DC
Power Supply Output Current10 A
Permissible Transient Current1,5 x In (5 saniye için)
Input Voltage Limits320…575 V AC 3 faz
Mains Frequency50–60 Hz
Earthing SystemTN; TT; IT
Maximum Leakage Current2 mA 500 V AC
Input Protection TypeEntegre sigorta (birbiriyle değiştirilemez) 3,15 A; External protection (recommended)
Inrush Current25 A @ 380 V; 25 A @ 500 V
Efficiency89,5 % @ 380 V AC; 89,5 % @ 500 V AC
Output Voltage Adjustment Range24–28 V
Power Loss (W)27 W
Current Consumption< 0.75 A 380 V AC; < 0.65 A 500 V AC
Turn-on Time<1 s
Hold-up Time> 20 ms 380 V AC; > 40 ms 500 V AC
Startup with Capacitive Loads200000 µF
Residual Ripple< 100 mV
Mean Time Between Failures (MTBF)1095200 h at 25 °C, tam load (SR 332); 416700 h at 55 °C, 80 % load (SR 332)
Line and Load Regulation< 0.17 % network 100 % load in line at 25 °C; < 0.6 % +/- 0.5 % network 150 % load at 25 °C
Status LED1 LED (yeşil ve kırmızı) product status; 1 LED (yeşil) giriş gerilimi
Depth125.2 mm
Height124 mm
Width50 mm
Product Weight0.91 kg
Conformity MarkingsCE; UKCA
Mounting SupportSilindir şapka tipi TH35-15 ray (IEC 60715); Silindir şapka tipi TH35-7.5 ray (IEC 60715); Double-profile DIN ray
SupplySELV (IEC 60950-1); SELV (IEC 60204-1); SELV (IEC 60364-4-41)
Service Life10 yr 40 °C 80 % load
Overvoltage categoryIII; II
CertificationsCE; CUL Listelenen; CUL Tanınan; RCM; CB Şeması; EAC; KC; UKCA; CURus
Operating Altitude< 5000 m overvoltage category III; overvoltage category II
Shock Resistance150 m/s² için 11 ms
IP RatingIP20
Electric Shock Protection ClassClass I
