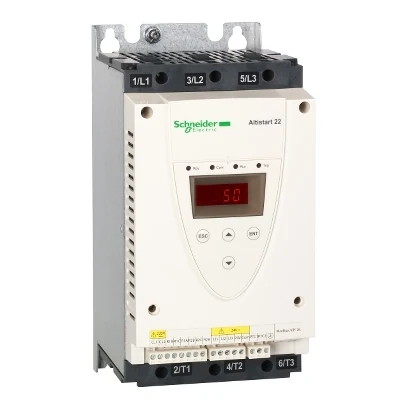

Schneider Electric ATS22D17Q ALTISTART Soft Starter - ATS22
- Brand: Schneider Electric
- SKU: ATS22D17Q
- MPN: ATS22D17Q
- Price: 59602.88 TRY + VAT · incl. VAT 71523.46 TRY
- Availability: Made to order
- Soft Starters
- Selection guide: Soft Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ATS22D17Q Teknik Veri Föyü (PDF)
Schneider Electric ATS22D17Q ALTISTART Soft Starter - ATS22. Technical specifications of this model: Series: ALTISTART
| Series | ALTISTART |
|---|---|
| Product Type | Yumuşak Yol Verici |
| Intended Field of Application | Asenkron motorlar |
| Application | Pompalar ve fanlar |
| Number of Phases | 3-Phase |
| Rated Control Supply Voltage (Us) | 230…440 V % - 15…10 |
| Motor Power (kW) | 4 kW 230 V; 7,5 kW 400 V; 7,5 kW 440 V |
| Power Loss (W) | 39 W standart uygulamalar için |
| Utilization Category | AC-53A |
| Starting Type | Moment kontrolü ile yolverme (akım 3,5 In ile sınırlandırılmıştır) |
| IP Rating | IP20 |
| Mounting Style | Soğutma bloklu |
| Available Functions | Dahili bypas |
| Supply Voltage Limits | 195–484 V |
| Mains Frequency | 50…60 Hz - 10…10 % |
| Device Connection | Motor besleme hattında; Motor delta terminallerine |
| Rated Control Circuit Voltage (Uc) | 230 V % - 15…10 50/60 Hz |
| Number of Digital Outputs | 2 |
| Minimum Switching Current | 100 mA @ 12 V DC (röle çıkışları) |
| Number of Digital Inputs | 3 |
| Digital Input Type | (LI1, LI2, LI3) lojik, 5 mA 4,3 kOhm |
| Digital Input Voltage | 24 V <= 30 V |
| Digital Input Logic | Pozitif lojik LI1, LI2, LI3 0 Durumunda: < 5 V ve <= 2 mA 1 Durumunda: > 11 V, >= 5; mA |
| Output Current | 0,4…1 Icl ayarlanabilir |
| Communication Protocol | Modbus |
| Connector Type | 1 RJ45 |
| Communication Data Link | seri |
| Physical Interface | RS485 çoklu priz |
| Transmission Speed | 4800, 9600 veya 19200 bps |
| Protection Type | Faz hatası: hat; Termal koruma: motor; Termal koruma: yolverici |
| Conformity Markings | CE |
| Cooling Type | Zorlamalı konveksiyon |
| Operating Position | Dikey +/- 10 derece |
| Height | 265 mm |
| Width | 130 mm |
| Depth | 169 mm |
| Product Weight | 7 kg |
| Standards | IEC 60947-4-2 |
| Certifications | UL; GOST; CSA; CCC; C-Tick |
| Vibration Resistance | 1 gn (f= 13…200 Hz) (IEC 60068-2-6); 1,5 mm (f= 2…13 Hz) (IEC 60068-2-6) |
