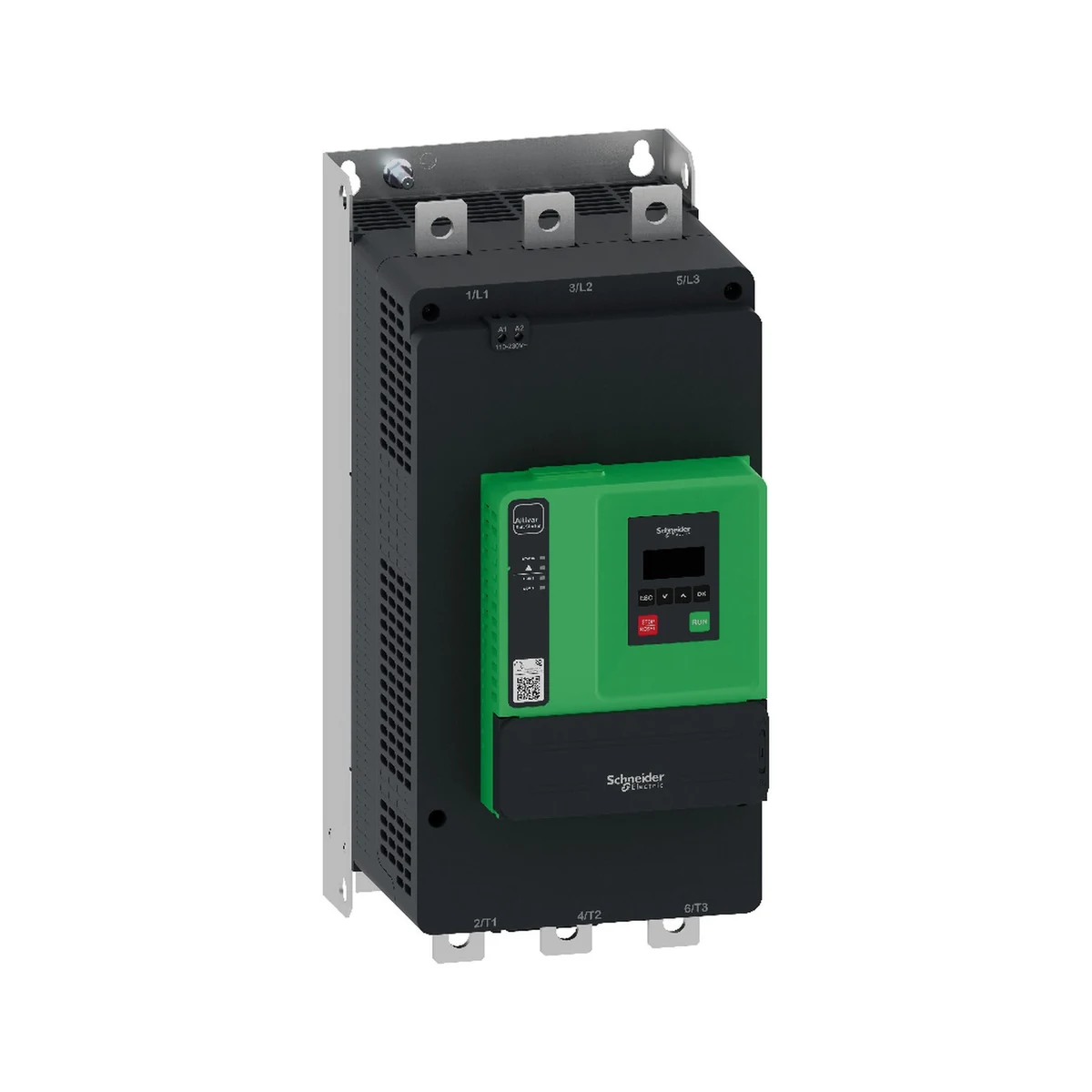

Schneider Electric ATS430C21S6 ALTIVAR Soft Starter - ATS430 - 210A
- Brand: Schneider Electric
- SKU: ATS430C21S6
- MPN: ATS430C21S6
- Price: 240023.91 TRY + VAT · incl. VAT 288028.69 TRY
- Availability: Made to order
- Soft Starters
- Selection guide: Soft Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ATS430C21S6 Teknik Veri Föyü (PDF)
Schneider Electric ATS430C21S6 ALTIVAR Soft Starter - ATS430 - 210A. Technical specifications of this model: Series: ALTIVAR
| Series | Altivar |
|---|---|
| Product Type | Yumuşak Yol Verici |
| Intended Field of Application | Asenkron motorlar |
| Application | Standard industrial machines |
| Number of Phases | 3-Phase |
| Utilization Category | AC-3A; AC-53A |
| Supply Voltage | 208…600 V AC (% - 15…10) |
| Mains Frequency | 50…60 Hz - 20…20 % |
| Service Factor | 100 |
| IP Rating | IP00 |
| Motor Power (HP) | 60 hp @ 208 V normal şart; 75 hp @ 230 V normal şart; 150 hp @ 460 V normal şart; 200 hp @ 575 V normal şart |
| Communication Protocol | Modbus seri |
| Device Connection | In line |
| Overload Current Profile | 13 s için 400 % Ie |
| Load Factor | 50 % |
| Maximum Operating Rate (cycles/h) | 10 cyc/h |
| Rated Control Supply Voltage (Us) | 110…230 V AC 50…60 Hz % - 15…10 |
| Apparent Power | 70 VA |
| Integrated Motor Overload Protection | Yes |
| Motor Thermal Protection Class | Sınıf 10E |
| Current Limiting (%In) | 150…700 % |
| Rated Current for Power Loss (In) | 210 A |
| Power Loss (Static) | 19 W |
| Power Loss (Current Dependent) | 35 W |
| Power Loss During Starting | 1763 W during starting at 40 °C at 400% In |
| Standards | EN/IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 |
| Certifications | cULus; CE; UKCA; CCC; RCM; EAC; KC |
| Conformity Markings | CULus; CE; UKCA; CCC; RCM; EAC; KC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Number of Digital Inputs | 4 |
| Digital Input Type | (STOP) digital input, 4.4 kOhm; (RUN) digital input, 4.4 kOhm; (DI3) digital input, 4.4 kOhm; (DI4) digital input, 4.4 kOhm |
| Number of Relay Outputs | 2 |
| Relay Output Type | Röle çıkışları R1A, R1C NA; Röle çıkışları R1B, R1C NK; Röle çıkışları R2A, R2C NA |
| Minimum Switching Current | 100 mA @ 12 V DC için röle çıkışları |
| Maximum Switching Current | Röle çıkışları 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1; Röle çıkışları 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1 |
| Number of Analog Inputs | 1 |
| Analog Input Type | PTC1 : PTC sıcaklık probu; PTC2 : PTC sıcaklık probu |
| Number of Analog Outputs | 1 |
| Analog Output Type | Akım çıkışı AQ1 : 0…20 mA/4…20 mA , impedance< 500 Ohm; Gerilim çıkışı AQ1 : 0…10 V , impedance> 470 Ohm |
| Connector Type | 1 RJ45; Open style |
