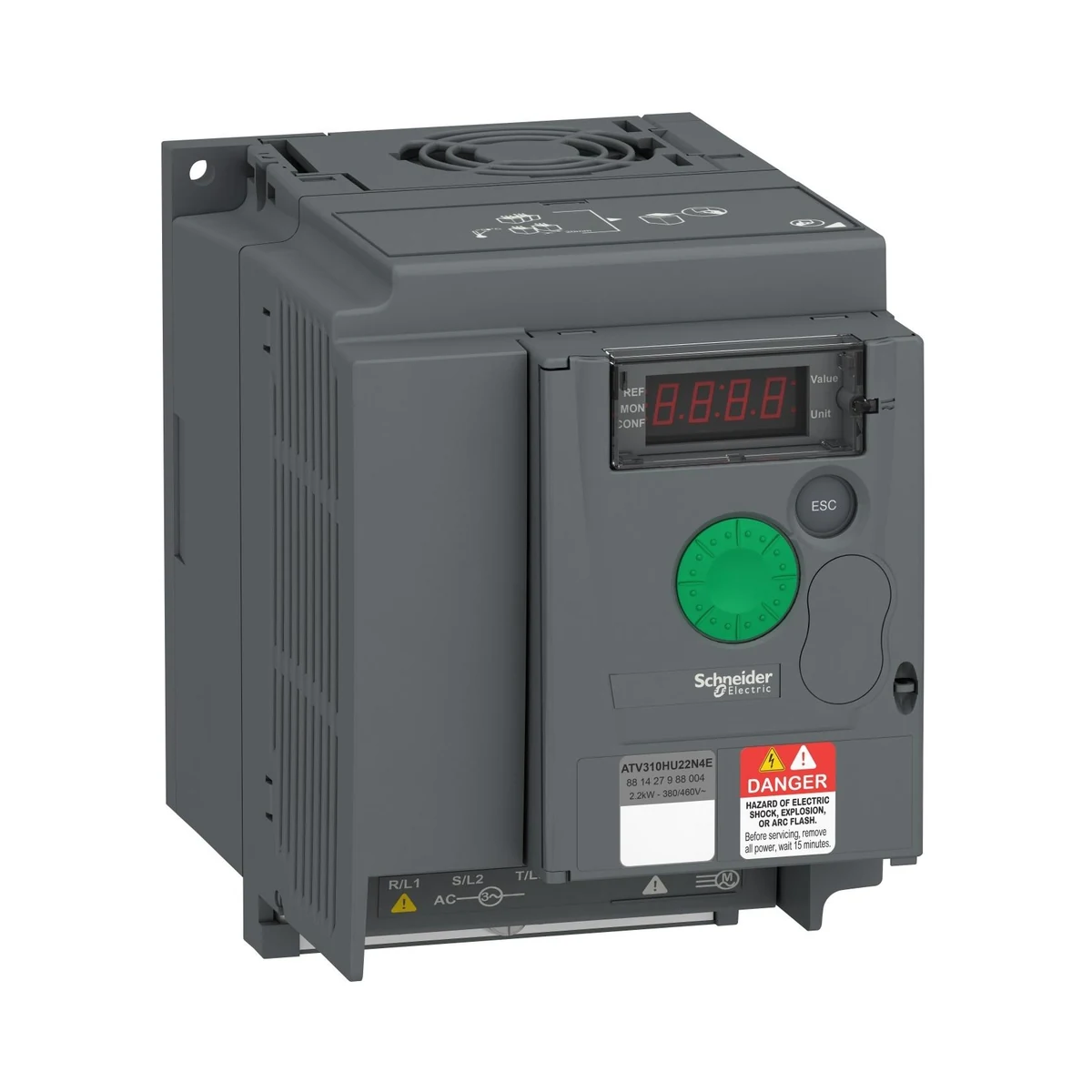

Schneider Electric ATV310HU22N4E ATV310 2.2 kW 400 V 3PH
- Brand: Schneider Electric
- SKU: ATV310HU22N4E
- MPN: ATV310HU22N4E
- Price: 32136.63 TRY + VAT · incl. VAT 38563.96 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
- Schneider Electric ATV310HU22N4E Teknik Veri Föyü (PDF)
Schneider Electric ATV310HU22N4E ATV310 2.2 kW 400 V 3PH. Technical specifications of this model: Motor Power: 2.2 kW Specified Operating Voltage: 400 V Number of Phases: 3 Series: EASY ALTIVAR 310 Product Type: Frequency Converter Short Device Name: ATV310 Number of Mains Phases: 3 phases Rated Supply Voltage: 380...460 V - 15...10 % Noise Level: 50 dB EMC filter: No EMC filter Communication Port Protocol: MODBUS Rated Switching Frequency: 4 kHz Tightening Torque: 0.8…1 N.M Number of Analog Inputs: 1 Number of Digital Inputs: 4 Number of Analog Outputs: 1 Number of Digital Outputs: 2 Height: 143 mm Width: 105 mm Depth: 151 mm Product Weight: 1.1 kg Supply Frequency: 50/60 Hz +/- 5 % IP Rating: IP20 at the top without a blanking plate; IP4X top Storage Temperature: -25…70 °C
| Motor Power | 2.2 kW |
|---|---|
| Specified Operating Voltage | 400 V |
| Number of Phases | 3-Phase |
| Series | EASY ALTIVAR 310 |
| Product Type | Frekans Konvertörü |
| Short Device Name | ATV310 |
| Number of Mains Phases | 3-Phase |
| Rated Supply Voltage | 380...460 V - 15...10 % |
| Noise Level | 50 dB |
| EMC Filter | EMC filtresiz |
| Communication Port Protocol | MODBUS |
| Rated Switching Frequency | 4 kHz |
| Tightening Torque | 0.8…1 N.M |
| Number of Analog Inputs | 1 |
| Number of Digital Inputs | 4 |
| Number of Analog Outputs | 1 |
| Number of Digital Outputs | 2 |
| Height | 143 mm |
| Width | 105 mm |
| Depth | 151 mm |
| Product Weight | 1.1 kg |
| Supply Frequency | 50/60 Hz +/- 5 % |
| IP Rating | IP20 üst kısımda kör plaka olmadan; IP4X üst |
| Storage Temperature | -25…70 °C |
