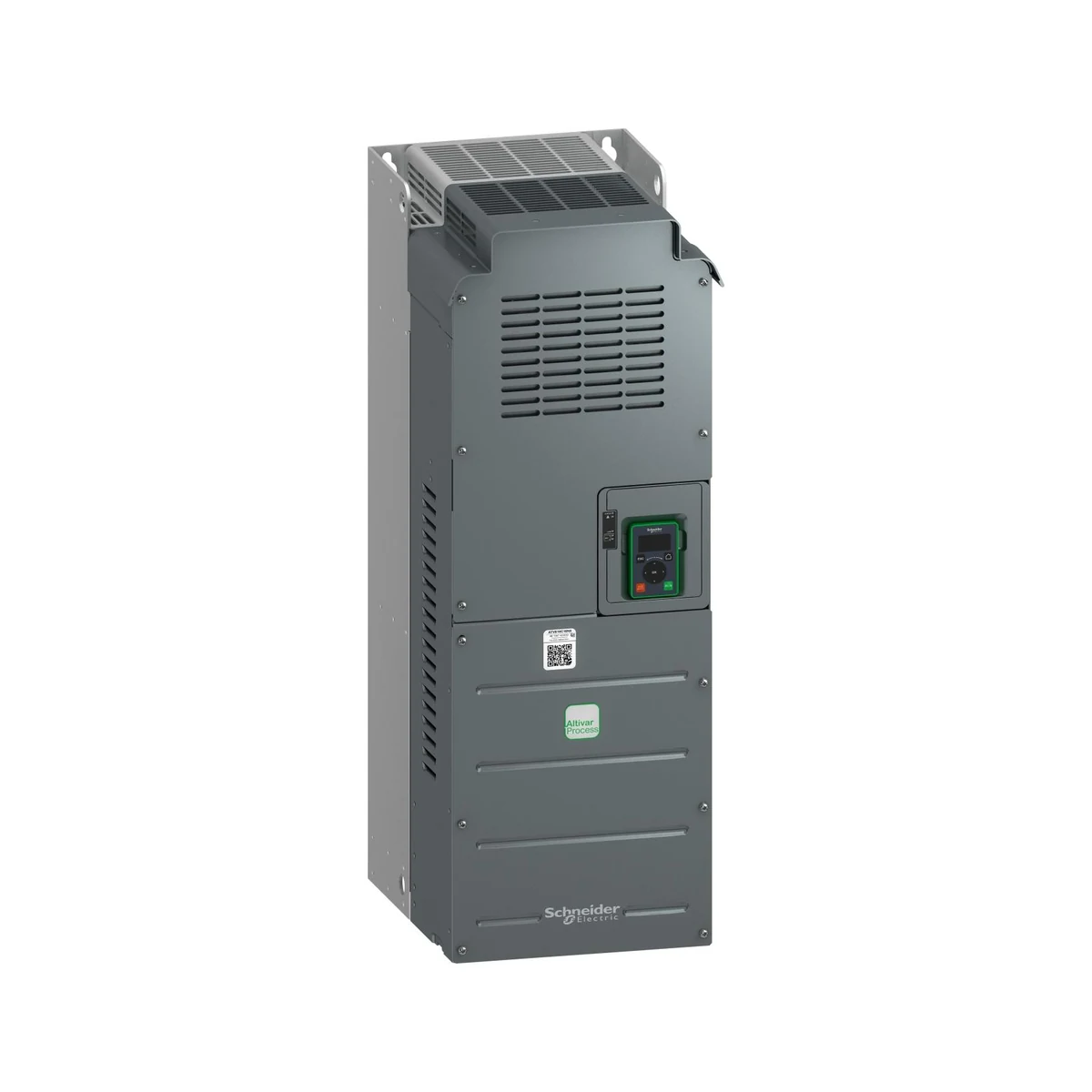

Schneider Electric ATV610C16N4 ATV610, VSD IP20 160kW, 380/415V
- Brand: Schneider Electric
- SKU: ATV610C16N4
- MPN: ATV610C16N4
- Price: 747704.77 TRY + VAT · incl. VAT 897245.72 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Schneider Electric ATV610C16N4 ATV610, VSD IP20 160kW, 380/415V. Technical specifications of this model: IP Rating: Upper section IP20, lower section IP00; IP20 with cable connection box Specified Operating Voltage: 380/415V Motor Power: 160kW Series: ALTIVAR ATV610 Product Type: Frequency Converter Short Device Name: ATV610 EMC filter: Integrated, compliant with IEC 61800-3 Category C3, with 50 m Supply Frequency: 50...60 Hz +/-5 % Number of Mains Phases: 3 PHASES Rated Supply Voltage: 380...460 V - 15...10 % Rated Switching Frequency: 2.5 kHz Communication Port Protocol: MODBUS SERIAL Width: 300 mm Depth: 375 mm Product Weight: 85.5 kg Number of Analog Inputs: 3 Number of Digital Inputs: 6 Number of Analog Outputs: 2 Number of Relay Outputs: 3
| IP Rating | Üst bölüm IP20, alt bölüm IP00; kablo bağlantı kutusuyla IP20 |
|---|---|
| Specified Operating Voltage | 380/415V |
| Motor Power | 160 kW |
| Series | ALTIVAR ATV610 |
| Product Type | Frekans Konvertörü |
| Short Device Name | ATV610 |
| EMC Filter | Entegre IEC 61800-3 Kategori C3'e uygun 50 m ile |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Number of Mains Phases | 3 PHASES |
| Rated Supply Voltage | 380...460 V - 15...10 % |
| Rated Switching Frequency | 2.5 kHz |
| Communication Port Protocol | MODBUS SERIAL |
| Width | 300 mm |
| Depth | 375 mm |
| Product Weight | 85.5 kg |
| Number of Analog Inputs | 3 |
| Number of Digital Inputs | 6 |
| Number of Analog Outputs | 2 |
| Number of Relay Outputs | 3 |
