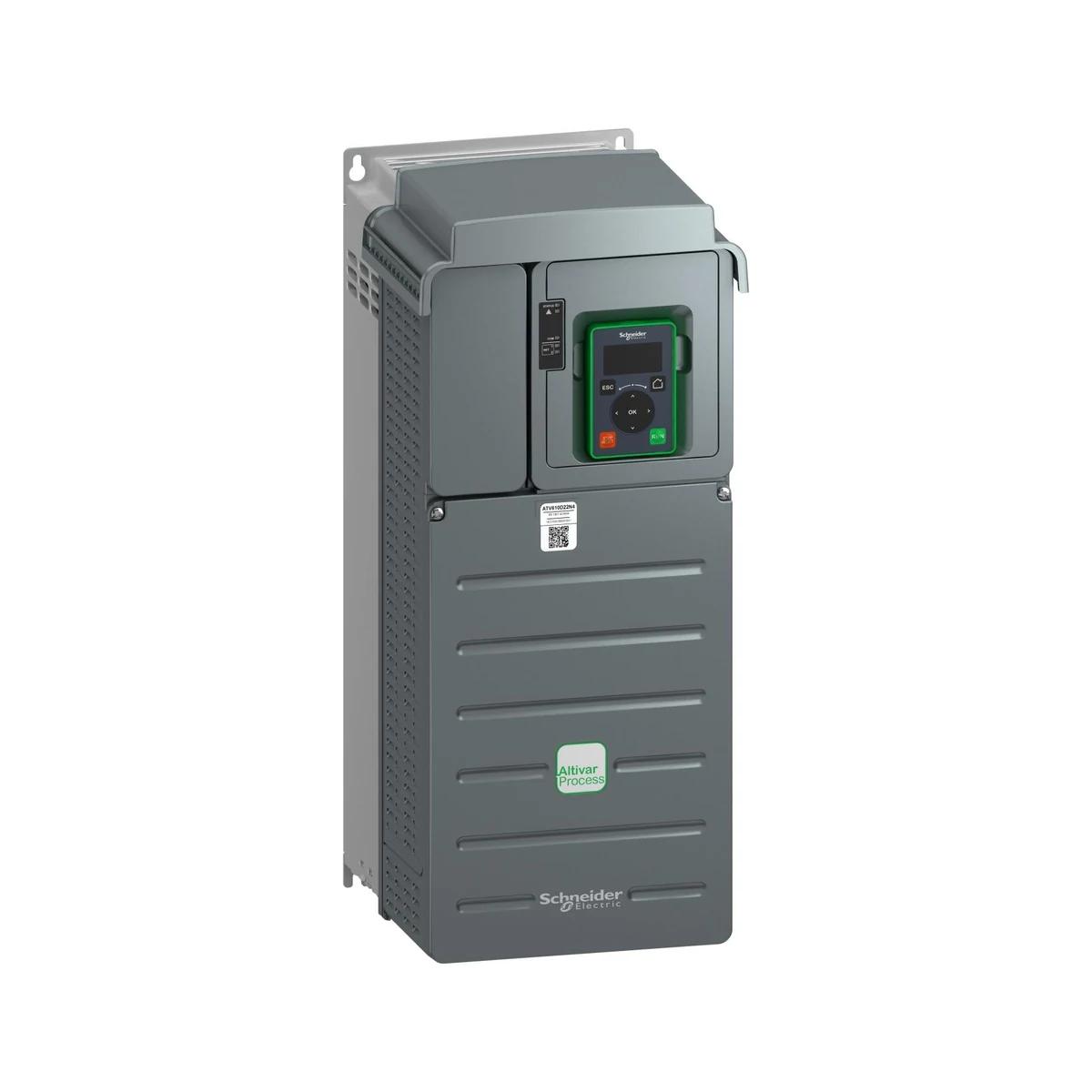

Schneider Electric ATV610D22N4 ATV610, VSD IP20 22kW, 380/415V
- Brand: Schneider Electric
- SKU: ATV610D22N4
- MPN: ATV610D22N4
- Price: 174082.66 TRY + VAT · incl. VAT 208899.19 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Schneider Electric ATV610D22N4 ATV610, VSD IP20 22kW, 380/415V. Technical specifications of this model: IP Rating: IP20 Specified Operating Voltage: 380/415V Motor Power: 22kW Series: EASY ALTIVAR 610 Product Type: Frequency Converter Short Device Name: ATV610 EMC filter: Integrated, compliant with IEC 61800-3 Category C3, with 50 m Supply Frequency: 50...60 Hz +/-5 % Number of Mains Phases: 3 PHASES Rated Supply Voltage: 380...460 V - 15...10 % Rated Switching Frequency: 4 kHz Communication Port Protocol: MODBUS SERIAL Width: 211 mm Depth: 232 mm Product Weight: 13.5 kg Number of Analog Inputs: 3 Number of Digital Inputs: 6 Number of Analog Outputs: 2 Number of Relay Outputs: 3 Storage Temperature: -40…70 °C
| IP Rating | IP20 |
|---|---|
| Specified Operating Voltage | 380/415V |
| Motor Power | 22 kW |
| Series | EASY ALTIVAR 610 |
| Product Type | Frekans Konvertörü |
| Short Device Name | ATV610 |
| EMC Filter | Entegre IEC 61800-3 Kategori C3'e uygun 50 m ile |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Number of Mains Phases | 3 PHASES |
| Rated Supply Voltage | 380...460 V - 15...10 % |
| Rated Switching Frequency | 4 kHz |
| Communication Port Protocol | MODBUS SERIAL |
| Width | 211 mm |
| Depth | 232 mm |
| Product Weight | 13.5 kg |
| Number of Analog Inputs | 3 |
| Number of Digital Inputs | 6 |
| Number of Analog Outputs | 2 |
| Number of Relay Outputs | 3 |
| Storage Temperature | -40…70 °C |
