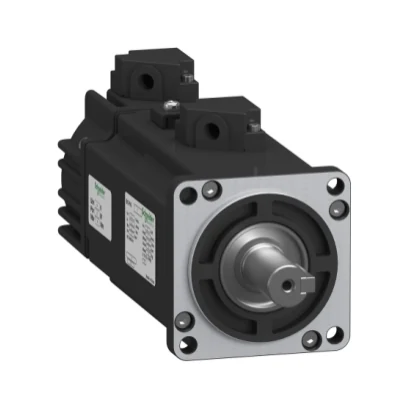

Schneider Electric BCH16HD02332F5C2 BCH16Motor 0.2kW H60-14 3000 B 220V 23
- Brand: Schneider Electric
- SKU: BCH16HD02332F5C2
- MPN: BCH16HD02332F5C2
- Price: 44368.56 TRY + VAT · incl. VAT 53242.27 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH16HD02332F5C2 Teknik Veri Föyü (PDF)
Schneider Electric BCH16HD02332F5C2 BCH16Motor 0.2kW H60-14 3000 B 220V 23. Technical specifications of this model: Specified Operating Voltage: 220V Motor Power: 0.2kW
| Specified Operating Voltage | 220 V |
|---|---|
| Motor Power | 0.2 kW |
| Series | Lexium 16D |
| Compatible Series | Lexium 16D |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 5000 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 1.6 A |
| Continuous Stall Torque | 0,64 N.m için LXM16D @ 2,59 A, 220 V, monofaze |
| Continuous Power | 200 W |
| Peak Stall Torque | 1,91 N.m için LXM16D @ 2,59 A, 220 V, monofaze |
| Rated Output Power | 200 W için LXM16D @ 2,59 A, 220 V, monofaze |
| Rated Torque | 0,64 N.m için LXM16D @ 2,59 A, 220 V, monofaze |
| Rated Speed | 3000 rpm için LXM16D @ 2,59 A, 220 V, monofaze |
| Maximum Continuous Current | 4.8 A |
| Compatible Products | LXM16D hareket servo motorları motor @ 0,2 kW, 220 V, monofaze |
| Shaft End | Paralel anahtar |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 14 mm |
| Shaft Length | 20 mm |
| Key Width | 5 mm |
| Feedback Type | 23 bit yüksek çözünürlüklü kodlayıcı |
| Brake | Available |
| Holding Torque | 1,5 N.m dahili |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 60 mm |
| Electrical Connection | Free lead |
| Torque Constant | 0,46 N.m/A @ 20 °C |
| Back EMF Constant | 28,0 V/krpm @ 20 °C |
| Rotor Inertia | 0,48 kg.cm² |
| Stator Resistance | 6,4 Ohm @ 20 °C |
| Stator Inductance | 18 mH @ 20 °C |
| Stator Electrical Time Constant | 2,81 ms @ 20 °C |
| Maximum Radial Force (Fr) | 197.96 N @ 3000 rpm |
| Maximum Axial Force (Fa) | 61,74 N |
| Brake Pull-in Power | 7.4 W |
| Cooling Type | Doğal konveksiyon |
| Length | 145 mm |
| Mean Ring Diameter | 50 mm |
