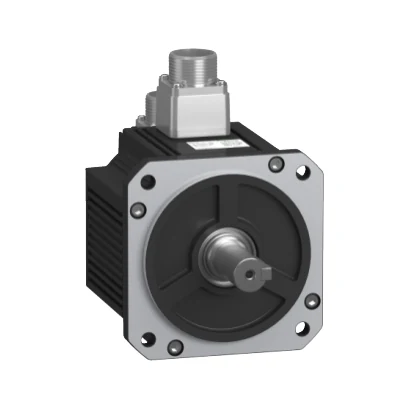

Schneider Electric BCH16HM08132A6C2 BCH16Motor 0.85kW H130-22 1500 220V 23
- Brand: Schneider Electric
- SKU: BCH16HM08132A6C2
- MPN: BCH16HM08132A6C2
- Price: 50206.53 TRY + VAT · incl. VAT 60247.84 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH16HM08132A6C2 Teknik Veri Föyü (PDF)
Schneider Electric BCH16HM08132A6C2 BCH16Motor 0.85kW H130-22 1500 220V 23. Technical specifications of this model: Specified Operating Voltage: 220V Motor Power: 0.85kW
| Specified Operating Voltage | 220 V |
|---|---|
| Motor Power | 0.85 kW |
| Series | Lexium 16D |
| Compatible Series | Lexium 16D |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 3000 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 7 A |
| Continuous Stall Torque | 5,39 N.m için LXM16D @ 14,43 A, 220 V, monofaze |
| Continuous Power | 850 W |
| Peak Stall Torque | 13,8 N.m için LXM16D @ 14,43 A, 220 V, monofaze |
| Rated Output Power | 850 W için LXM16D @ 14,43 A, 220 V, monofaze |
| Rated Torque | 5,39 N.m için LXM16D @ 14,43 A, 220 V, monofaze |
| Rated Speed | 1500 rpm için LXM16D @ 14,43 A, 220 V, monofaze |
| Maximum Continuous Current | 18.1 A |
| Compatible Products | LXM16D hareket servo motorları motor @ 0,85 kW, 220 V, monofaze |
| Shaft End | Paralel anahtar |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 22 mm |
| Shaft Length | 35 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bit yüksek çözünürlüklü kodlayıcı |
| Brake | None |
| Holding Torque | 15,0 N.m |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 130 mm |
| Electrical Connection | Konnektör MIL |
| Torque Constant | 0,75 N.m/A @ 20 °C |
| Back EMF Constant | 51,7 V/krpm @ 20 °C |
| Rotor Inertia | 14,08 kg.cm² |
| Stator Resistance | 0,65 Ohm @ 20 °C |
| Stator Inductance | 5,5 mH @ 20 °C |
| Stator Electrical Time Constant | 8,46 ms @ 20 °C |
| Maximum Radial Force (Fr) | 498.82 N @ 1500 rpm |
| Maximum Axial Force (Fa) | 176,4 N |
| Cooling Type | Doğal konveksiyon |
| Length | 154.3 mm |
| Mean Ring Diameter | 110 mm |
| Mean Ring Depth | 6 mm |
