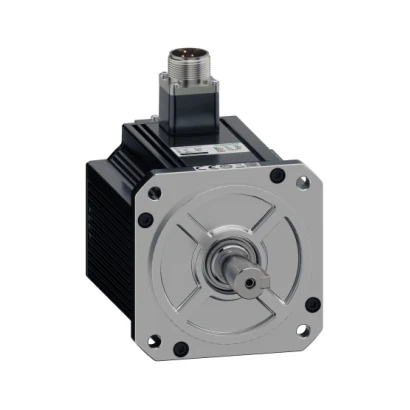

Schneider Electric BCH18LM30332A6C 3000W, 22mm, Low Inertia, 3000rpm, 23bit Encoder
- Brand: Schneider Electric
- SKU: BCH18LM30332A6C
- MPN: BCH18LM30332A6C
- Price: 77227.98 TRY + VAT · incl. VAT 92673.58 TRY
- Availability: In stock
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18LM30332A6C Teknik Veri Föyü (PDF)
Schneider Electric BCH18LM30332A6C 3000W, 22mm, Low Inertia, 3000rpm, 23bit Encoder. Technical specifications of this model: Resolution: 23bit Rated Speed: 3000rpm
| Rated Speed | 3000rpm |
|---|---|
| Resolution | 23bit |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 200–240 V |
| Continuous Stall Current | 18.6 A |
| Continuous Stall Torque | 9,8 N.m, 220 V |
| Continuous Power | 3000 W |
| Peak Stall Torque | 29,4 N.m, 220 V |
| Rated Output Power | 3000 W, 220 V |
| Rated Torque | 9,8 N.m, 220 V |
| Maximum Continuous Current | 56 A |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 28 mm |
| Shaft Length | 63 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bits optic incremental encoder |
| Brake | None |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 130 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Torque Constant | 0,53 N.m/A @ 40 °C |
| Back EMF Constant | 35,0 V/krpm @ 40 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 7,63 kg.cm² |
| Stator Resistance | 0,1 Ohm |
| Stator Inductance | 1,53 mH |
| Maximum Radial Force (Fr) | 980 N |
| Maximum Axial Force (Fa) | 392 N |
| Length | 208.9 mm |
| Number of Mounting Holes | 4,0 |
| Mounting Hole Circle Diameter | 9 mm |
| Width | 205.9 mm |
| Height | 130 mm |
| Depth | 208.9 mm |
| Product Weight | 10.3 kg |
| Encoder Type | Optic encoder |
| Inertia | 0,0 kg.cm² of brake; 7,63 kg.cm² of motor |
