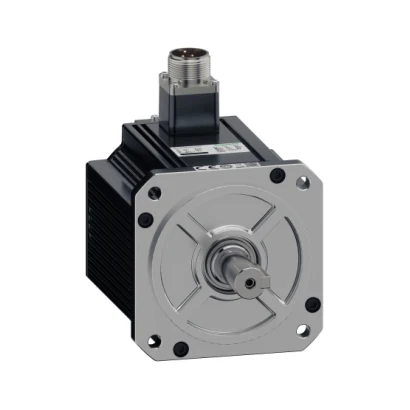

Schneider Electric BCH18LM3033CA6C BCH18 Motor 3kw M130 23bit ABS
- Brand: Schneider Electric
- SKU: BCH18LM3033CA6C
- MPN: BCH18LM3033CA6C
- Price: 85067.54 TRY + VAT · incl. VAT 102081.05 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18LM3033CA6C Teknik Veri Föyü (PDF)
Schneider Electric BCH18LM3033CA6C BCH18 Motor 3kw M130 23bit ABS. Technical specifications of this model: Resolution: 23bit Motor Power: 3kw
| Resolution | 23bit |
|---|---|
| Motor Power | 3 kW |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Continuous Stall Current | 18.6 A |
| Continuous Stall Torque | 9,8 N.m, 220 V |
| Continuous Power | 3000 W |
| Peak Stall Torque | 29,4 N.m, 220 V |
| Rated Output Power | 3000 W, 220 V |
| Rated Torque | 9,8 N.m, 220 V |
| Rated Speed | 3000 rpm, 220 V |
| Maximum Continuous Current | 56 A |
| Compatible Products | Motion servo drive hareket servo motorları motor @ 3,0 kW, 220 V |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 28 mm |
| Shaft Length | 63 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bits optic multi turn encoder |
| Brake | None |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 130 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 7,63 kg.cm² |
| Stator Resistance | 0,1 Ohm |
| Stator Inductance | 1,53 mH |
| Maximum Radial Force (Fr) | 980 N |
| Maximum Axial Force (Fa) | 392 N |
| Length | 208.9 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Circle Diameter | 9 mm |
| Width | 208.9 mm |
| Height | 130 mm |
| Depth | 182.4 mm |
| Product Weight | 10.3 kg |
| Encoder Type | Optic encoder |
| Inertia | 0,0 kg.cm² of brake; 7,63 kg.cm² of motor |
