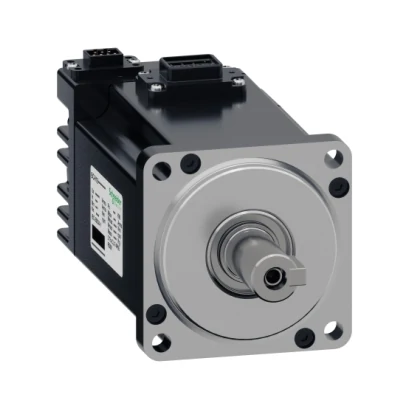

Schneider Electric BCH18MD01332A5C 100W, 14mm, Medium Inertia, 3000rpm, 23bit Encoder
- Brand: Schneider Electric
- SKU: BCH18MD01332A5C
- MPN: BCH18MD01332A5C
- Price: 31302.63 TRY + VAT · incl. VAT 37563.16 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MD01332A5C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MD01332A5C 100W, 14mm, Medium Inertia, 3000rpm, 23bit Encoder. Technical specifications of this model: Resolution: 23bit Rated Speed: 3000rpm
| Rated Speed | 3000rpm |
|---|---|
| Resolution | 23bit |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 200–240 V |
| Continuous Stall Current | 1.1 A |
| Continuous Stall Torque | 0,32 N.m, 220 V |
| Continuous Power | 100 W |
| Peak Stall Torque | 0,96 N.m, 220 V |
| Rated Output Power | 100 W, 220 V |
| Rated Torque | 0,32 N.m, 220 V |
| Maximum Continuous Current | 3.4 A |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 8 mm |
| Shaft Length | 25 mm |
| Key Width | 3 mm |
| Feedback Type | 23 bits optic incremental encoder |
| Brake | None |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 60 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Torque Constant | 0,29 N.m/A @ 40 °C |
| Back EMF Constant | 19,9 V/krpm @ 40 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 0,16 kg.cm² |
| Stator Resistance | 11,8 Ohm |
| Stator Inductance | 27,0 mH |
| Maximum Radial Force (Fr) | 254 N |
| Maximum Axial Force (Fa) | 74 N |
| Length | 69.2 mm |
| Number of Mounting Holes | 4,0 |
| Mounting Hole Circle Diameter | 5.5 mm |
| Width | 69.2 mm |
| Height | 60 mm |
| Depth | 68.6 mm |
| Product Weight | 0.65 kg |
| Encoder Type | Optic encoder |
| Inertia | 0,0 kg.cm² of brake; 0,16 kg.cm² of motor |
