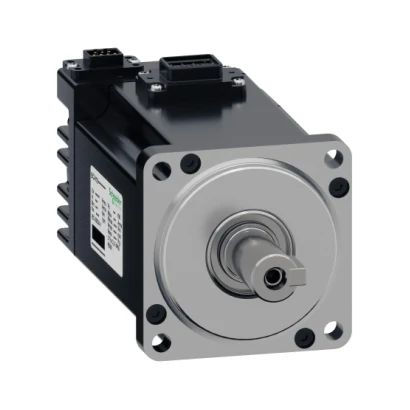

Schneider Electric BCH18MD0233CA5C BCH18 Motor 200w M60 23bit ABS
- Brand: Schneider Electric
- SKU: BCH18MD0233CA5C
- MPN: BCH18MD0233CA5C
- Price: 35750.61 TRY + VAT · incl. VAT 42900.73 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MD0233CA5C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MD0233CA5C BCH18 Motor 200w M60 23bit ABS. Technical specifications of this model: Resolution: 23bit
| Resolution | 23bit |
|---|---|
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Continuous Stall Current | 1.6 A |
| Continuous Stall Torque | 0,64 N.m, 220 V |
| Continuous Power | 200 W |
| Peak Stall Torque | 2,24 N.m, 220 V |
| Rated Output Power | 200 W, 220 V |
| Rated Torque | 0,64 N.m, 220 V |
| Rated Speed | 3000 rpm, 220 V |
| Maximum Continuous Current | 5.9 A |
| Compatible Products | Motion servo drive hareket servo motorları motor @ 0,2 kW, 220 V |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 14 mm |
| Shaft Length | 30 mm |
| Key Width | 5 mm |
| Feedback Type | 23 bits optic multi turn encoder |
| Brake | None |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 60 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 0,268 kg.cm² |
| Stator Resistance | 7,2 Ohm |
| Stator Inductance | 18,8 mH |
| Maximum Radial Force (Fr) | 245 N |
| Maximum Axial Force (Fa) | 74 N |
| Length | 77.9 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Circle Diameter | 5.5 mm |
| Width | 77.9 mm |
| Height | 60 mm |
| Depth | 68.6 mm |
| Product Weight | 0.85 kg |
| Encoder Type | Optic encoder |
| Inertia | 0,0 kg.cm² of brake; 0,268 kg.cm² of motor |
| IP Rating | IP67 |
