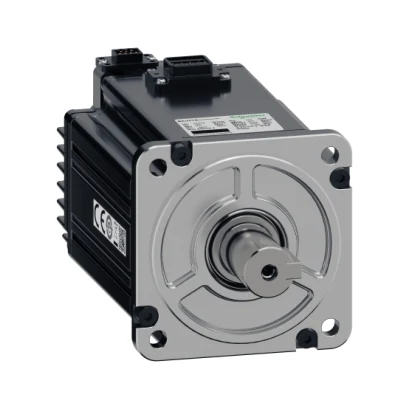

Schneider Electric BCH18MF1033CF5C BCH18 Motor 1kw M80 23bit ABS BK
- Brand: Schneider Electric
- SKU: BCH18MF1033CF5C
- MPN: BCH18MF1033CF5C
- Price: 78784.77 TRY + VAT · incl. VAT 94541.72 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MF1033CF5C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MF1033CF5C BCH18 Motor 1kw M80 23bit ABS BK. Technical specifications of this model: Resolution: 23bit Motor Power: 1kw
| Resolution | 23bit |
|---|---|
| Motor Power | 1 kW |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000,0 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Continuous Stall Current | 6.5 A |
| Continuous Stall Torque | 3,18 N.m, 220 V |
| Continuous Power | 1000 W |
| Peak Stall Torque | 11,13 N.m, 220 V |
| Rated Output Power | 1000 W, 220 V |
| Rated Torque | 3,18 N.m, 220 V |
| Rated Speed | 3000 rpm, 220 V |
| Maximum Continuous Current | 22.8 A |
| Compatible Products | Motion servo drive hareket servo motorları motor @ 1,0 kW, 220 V |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 19 mm |
| Shaft Length | 35 mm |
| Key Width | 6 mm |
| Feedback Type | 23 bits optic multi turn encoder |
| Brake | Available |
| Holding Torque | 3,0 N.m |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 80 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 2,32 kg.cm² |
| Stator Resistance | 0,82 Ohm |
| Stator Inductance | 3,0 mH |
| Maximum Radial Force (Fr) | 392 N |
| Maximum Axial Force (Fa) | 147 N |
| Length | 167.5 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Circle Diameter | 6.5 mm |
| Width | 167.5 mm |
| Height | 80 mm |
| Depth | 88.6 mm |
| Product Weight | 3.75 kg |
| Encoder Type | Optic encoder |
