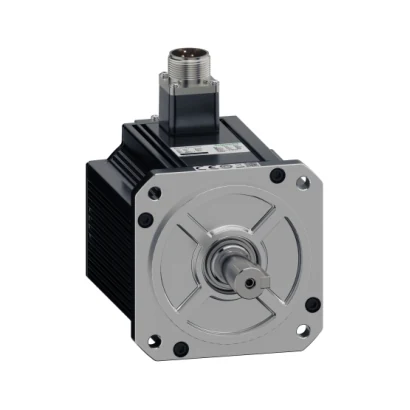

Schneider Electric BCH18MM0813CA6C BCH18 Motor 850w M130 23bit ABS
- Brand: Schneider Electric
- SKU: BCH18MM0813CA6C
- MPN: BCH18MM0813CA6C
- Price: 54598.91 TRY + VAT · incl. VAT 65518.69 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MM0813CA6C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MM0813CA6C BCH18 Motor 850w M130 23bit ABS. Technical specifications of this model: Resolution: 23bit
| Resolution | 23bit |
|---|---|
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 3000,0 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Continuous Stall Current | 7.3 A |
| Continuous Stall Torque | 5,39 N.m, 220 V |
| Continuous Power | 850 W |
| Peak Stall Torque | 16,17 N.m, 220 V |
| Rated Output Power | 850 W, 220 V |
| Rated Torque | 5,39 N.m, 220 V |
| Rated Speed | 1500 rpm, 220 V |
| Maximum Continuous Current | 22 A |
| Compatible Products | Motion servo drive hareket servo motorları motor @ 0,85 kW, 220 V |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 22 mm |
| Shaft Length | 55 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bits optic multi turn encoder |
| Brake | None |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 130 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 14,0 kg.cm² |
| Stator Resistance | 0,64 Ohm |
| Stator Inductance | 5,7 mH |
| Maximum Radial Force (Fr) | 686 N |
| Maximum Axial Force (Fa) | 343 N |
| Length | 145.9 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Circle Diameter | 9 mm |
| Width | 145.9 mm |
| Height | 130 mm |
| Depth | 182.4 mm |
| Product Weight | 6.85 kg |
| Encoder Type | Optic encoder |
| Inertia | 0,0 kg.cm² of brake; 14,0 kg.cm² of motor |
| IP Rating | IP67 |
