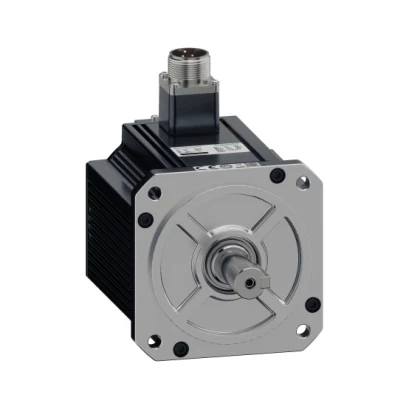

Schneider Electric BCH18MM1023CF6C BCH18 Motor 1kW M130 23bit ABS BK
- Brand: Schneider Electric
- SKU: BCH18MM1023CF6C
- MPN: BCH18MM1023CF6C
- Price: 78506.78 TRY + VAT · incl. VAT 94208.14 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BCH18MM1023CF6C Teknik Veri Föyü (PDF)
Schneider Electric BCH18MM1023CF6C BCH18 Motor 1kW M130 23bit ABS BK. Technical specifications of this model: Resolution: 23bit Motor Power: 1kW
| Resolution | 23bit |
|---|---|
| Motor Power | 1 kW |
| Series | Lexium 18 |
| Compatible Series | Lexium 18 |
| Product Type | Servo motor |
| Maximum Mechanical Speed | 3000,0 rpm |
| Rated Control Supply Voltage (Us) | 220 V |
| Continuous Stall Current | 6 A |
| Continuous Stall Torque | 4,77 N.m, 220 V |
| Continuous Power | 1000 W |
| Peak Stall Torque | 14,31 N.m, 220 V |
| Rated Output Power | 1000 W, 220 V |
| Rated Torque | 4,77 N.m, 220 V |
| Rated Speed | 2000 rpm, 220 V |
| Maximum Continuous Current | 18.3 A |
| Compatible Products | Motion servo drive hareket servo motorları motor @ 1,0 kW, 220 V |
| Shaft End | Paralel anahtar |
| Shaft Diameter | 22 mm |
| Shaft Length | 55 mm |
| Key Width | 8 mm |
| Feedback Type | 23 bits optic multi turn encoder |
| Brake | Available |
| Holding Torque | 20,0 N.m |
| Mounting Support | Asya standardı flanş |
| Motor Flange Size | 130 mm |
| Electrical Connection | 2 konnektör Erkek/dişi |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 14,7 kg.cm² |
| Stator Resistance | 0,64 Ohm |
| Stator Inductance | 5,7 mH |
| Maximum Radial Force (Fr) | 686 N |
| Maximum Axial Force (Fa) | 343 N |
| Length | 188.5 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Circle Diameter | 9 mm |
| Width | 188.5 mm |
| Height | 130 mm |
| Depth | 182 mm |
| Product Weight | 8.35 kg |
| Encoder Type | Optic encoder |
