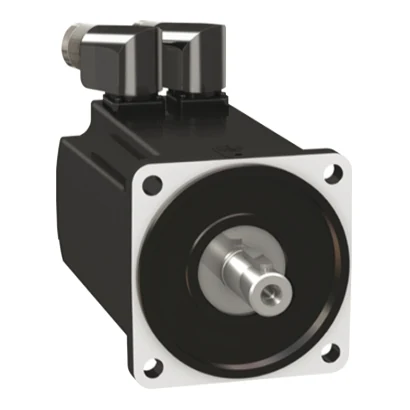

Schneider Electric BMH1003P16F2A BMH 100mm key IP54 st 16 brake angular
- Brand: Schneider Electric
- SKU: BMH1003P16F2A
- MPN: BMH1003P16F2A
- Price: 118983.36 TRY + VAT · incl. VAT 142780.03 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BMH1003P16F2A Teknik Veri Föyü (PDF)
Schneider Electric BMH1003P16F2A BMH 100mm key IP54 st 16 brake angular. Technical specifications of this model: IP Rating: IP54
| IP Rating | IP54 |
|---|---|
| Product Type | Servo motor |
| Maximum Mechanical Speed | 6000 rpm |
| Continuous Stall Torque | 8,4 N.m için LXM32.D30N4 @ 10 A, 400 V, trifaze; 8,4 N.m için LXM32.D30N4 @ 10 A, 480 V, trifaze |
| Peak Stall Torque | 25,1 N.m için LXM32.D30N4 @ 10 A, 400 V, trifaze; 25,1 N.m için LXM32.D30N4 @ 10 A, 480 V, trifaze |
| Rated Output Power | 2700 W için LXM32.D30N4 @ 10 A, 400 V, trifaze; 2700 W için LXM32.D30N4 @ 10 A, 480 V, trifaze |
| Rated Torque | 6,2 N.m için LXM32.D30N4 @ 10 A, 400 V, trifaze; 6,2 N.m için LXM32.D30N4 @ 10 A, 480 V, trifaze |
| Rated Speed | 4000 rpm için LXM32.D30N4 @ 10 A, 400 V, trifaze; 4000 rpm için LXM32.D30N4 @ 10 A, 480 V, trifaze |
| Compatible Products | LXM32.D30N4 @ 400…480 V trifaze |
| Shaft End | Kilitli |
| Speed Feedback Resolution | 32768 nokta/dönüş |
| Brake | Available |
| Mounting Support | Uluslararası standart flanş |
| Electrical Connection | Döndürülebilir sağa açılı konnektörler |
| Compatible Series | Lexium 32 |
| Rated Control Supply Voltage (Us) | 480 V |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 7.69 A |
| Continuous Power | 3.3 W |
| Maximum Continuous Current | 29.1 A |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 19 mm |
| Shaft Length | 40 mm |
| Key Width | 30 mm |
| Feedback Type | Tek dönüşlü SinCos Hiperface |
| Holding Torque | 9 N.m frenleme |
| Motor Flange Size | 100 mm |
| Number of Motor Stacks | 3 |
| Torque Constant | 1,17 N.m/A @ 120 °C |
| Back EMF Constant | 63,5 V/krpm @ 120 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 10,3 kg.cm² |
| Stator Resistance | 0,63 Ohm @ 20 °C |
| Stator Inductance | 2,615 mH @ 20 °C |
| Stator Electrical Time Constant | 6,3 ms @ 20 °C |
| Maximum Radial Force (Fr) | 1050 N @ 1000 rpm; 830 N @ 2000 rpm; 730 N @ 3000 rpm; 660 N @ 4000 rpm; 610 N @ 5000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Brake Pull-in Power | 18 W |
| Cooling Type | Doğal konveksiyon |
| Length | 234.3 mm |
