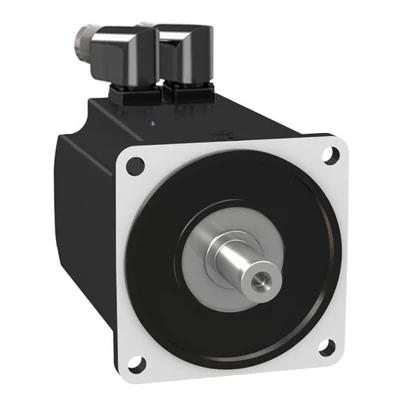

Schneider Electric BMH1402P16F2A BMH 140mm key IP54 st 16 brake angular
- Brand: Schneider Electric
- SKU: BMH1402P16F2A
- MPN: BMH1402P16F2A
- Price: 168077.89 TRY + VAT · incl. VAT 201693.47 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BMH1402P16F2A Teknik Veri Föyü (PDF)
Schneider Electric BMH1402P16F2A BMH 140mm key IP54 st 16 brake angular. Technical specifications of this model: IP Rating: IP54
| IP Rating | IP54 |
|---|---|
| Product Type | Servo motor |
| Maximum Mechanical Speed | 4000 rpm |
| Continuous Stall Torque | 18,5 N.m için LXM32.D72N4 @ 24 A, 400 V, trifaze; 18,5 N.m için LXM32.D72N4 @ 24 A, 480 V, trifaze |
| Peak Stall Torque | 50,3 N.m için LXM32.D72N4 @ 24 A, 400 V, trifaze; 50,3 N.m için LXM32.D72N4 @ 24 A, 480 V, trifaze |
| Rated Output Power | 3500 W için LXM32.D72N4 @ 24 A, 400 V, trifaze; 3500 W için LXM32.D72N4 @ 24 A, 480 V, trifaze |
| Rated Torque | 12,2 N.m için LXM32.D72N4 @ 24 A, 400 V, trifaze; 12,2 N.m için LXM32.D72N4 @ 24 A, 480 V, trifaze |
| Rated Speed | 3000 rpm için LXM32.D72N4 @ 24 A, 400 V, trifaze; 3000 rpm için LXM32.D72N4 @ 24 A, 480 V, trifaze |
| Compatible Products | LXM32.D72N4 @ 400…480 V trifaze |
| Shaft End | Kilitli |
| Speed Feedback Resolution | 32768 nokta/dönüş |
| Brake | Available |
| Mounting Support | Uluslararası standart flanş |
| Electrical Connection | Döndürülebilir sağa açılı konnektörler |
| Compatible Series | Lexium 32 |
| Rated Control Supply Voltage (Us) | 480 V |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 16.83 A |
| Continuous Power | 4.44 W |
| Maximum Continuous Current | 57.4 A |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 24 mm |
| Shaft Length | 50 mm |
| Key Width | 40 mm |
| Feedback Type | Tek dönüşlü SinCos Hiperface |
| Holding Torque | 18 N.m frenleme |
| Motor Flange Size | 140 mm |
| Number of Motor Stacks | 2 |
| Torque Constant | 1,24 N.m/A @ 120 °C |
| Back EMF Constant | 70,7 V/krpm @ 120 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 33,5 kg.cm² |
| Stator Resistance | 0,23 Ohm @ 20 °C |
| Stator Inductance | 2,6 mH @ 20 °C |
| Stator Electrical Time Constant | 13 ms @ 20 °C |
| Maximum Radial Force (Fr) | 2240 N @ 1000 rpm; 1780 N @ 2000 rpm; 1550 N @ 3000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Brake Pull-in Power | 18 W |
| Cooling Type | Doğal konveksiyon |
| Length | 227 mm |
