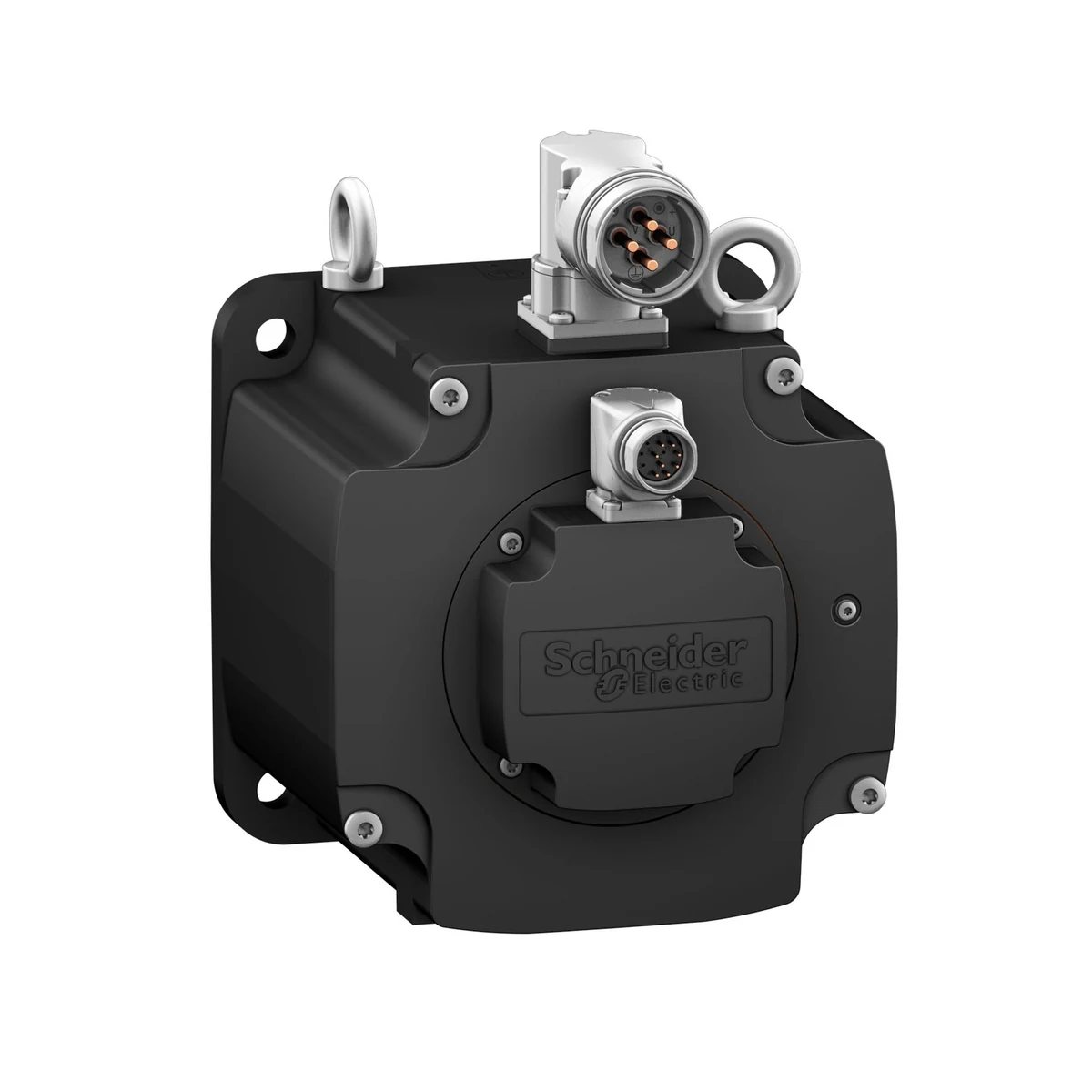

Schneider Electric BMH1901P21F2A BMH 190mm key IP65/67 st brake angular
- Brand: Schneider Electric
- SKU: BMH1901P21F2A
- MPN: BMH1901P21F2A
- Price: 293344.02 TRY + VAT · incl. VAT 352012.82 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BMH1901P21F2A Teknik Veri Föyü (PDF)
Schneider Electric BMH1901P21F2A BMH 190mm key IP65/67 st brake angular. Technical specifications of this model: IP Rating: IP65/67
| IP Rating | IP65/67 |
|---|---|
| Product Type | Servo motor |
| Maximum Mechanical Speed | 4000 rpm |
| Compatible Products | LXM32.D72N4 @ 400…480 V trifaze |
| Shaft End | Pürüzsüz şaft |
| Speed Feedback Resolution | 131072 nokta/dönüş |
| Brake | Available |
| Mounting Support | Uluslararası standart flanş |
| Electrical Connection | Döndürülebilir sağa açılı konnektörler |
| Compatible Series | Lexium 32 |
| Rated Control Supply Voltage (Us) | 480 V |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 23.2 A |
| Continuous Power | 5.24 W |
| Maximum Continuous Current | 89.6 A |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 38 mm |
| Shaft Length | 80 mm |
| Feedback Type | Tek dönüşlü SinCos Hiperface |
| Holding Torque | 80 N.m frenleme |
| Motor Flange Size | 190 mm |
| Number of Motor Stacks | 1 |
| Torque Constant | 1,3 N.m/A @ 120 °C |
| Back EMF Constant | 87,6 V/krpm @ 120 °C |
| Number of Motor Poles | 5,0 |
| Rotor Inertia | 71,7 kg.cm² |
| Stator Resistance | 0,24 Ohm @ 20 °C |
| Stator Inductance | 2,54 mH @ 20 °C |
| Stator Electrical Time Constant | 21,2 ms @ 20 °C |
| Maximum Radial Force (Fr) | 3730 N @ 1000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Brake Pull-in Power | 40 W |
| Cooling Type | Doğal konveksiyon |
| Length | 250 mm |
| Mean Ring Diameter | 180 mm |
| Mean Ring Depth | 4 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 14 mm |
| Mounting Hole Circle Diameter | 215 mm |
| Product Weight | 20.5 kg |
