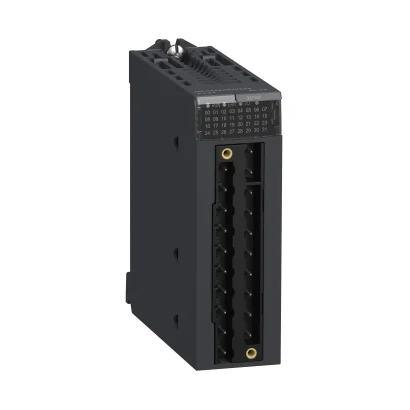

Schneider Electric BMXDAI1604 16 Input 100-120vAC
- Brand: Schneider Electric
- SKU: BMXDAI1604
- MPN: BMXDAI1604
- Price: 22684.68 TRY + VAT · incl. VAT 27221.62 TRY
- Availability: Made to order
- Digital Input Modules
- Schneider Electric Digital Input Modules
- Selection guide: Digital Input Modules Selection Guide: Technical Criteria & Application Standards
- Schneider Electric BMXDAI1604 Teknik Veri Föyü (PDF)
Schneider Electric BMXDAI1604 16 Input 100-120vAC.
| Series | Modicon X80 |
|---|---|
| Product Type | Dijital giriş modülü |
| Device Application | Endüstriyel uygulama |
| Number of Digital Inputs | 16 |
| Digital Input Voltage | 100…120 V AC için yalıtımlı |
| Digital Input Logic | Pozitif lojik (blok) |
| Insulation Resistance | > 10 MOhm 500 V DC |
| Typical Current Consumption | 76 mA DC |
| Current Consumption | <= 107 mA @ 3,3 V DC |
| Power Loss (W) | 3.8 W |
| Mean Time Between Failures (MTBF) | 1120000 H |
| Local Signalling | 1 LED (yeşil) for modül çalışıyor (RUN); Kanal başına 1 LED (yeşil) for kanal tanısı; 1 LED (kırmızı) for modül hatası (ERR); 1 LED (kırmızı) for modül G/Ç |
| Height | 103.7 mm |
| Width | 32 mm |
| Depth | 86 mm |
| Product Weight | 0.115 kg |
| IP Rating | IP20 |
| Conformity Markings | CE; UKCA; CULus; EAC; RCM |
| Standards | IEC 61131-2 |
| Dielectric Strength | 1500 V AC @ 50/60 Hz 1 min |
| Operating Ambient Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 5…95 % @ 55 °C yoğuşmasız |
| Operating Altitude | 0…2000 m; 2000…5000 m değer kaybı ile |
| Pollution Degree | 2 |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
