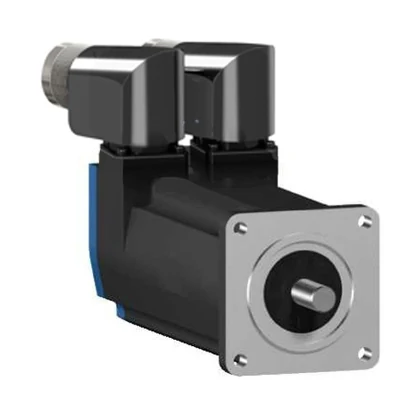

Schneider Electric BSH0553P11A2A BSH Servo Motor
- Brand: Schneider Electric
- SKU: BSH0553P11A2A
- MPN: BSH0553P11A2A
- Price: 69944.42 TRY + VAT · incl. VAT 83933.30 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BSH0553P11A2A Teknik Veri Föyü (PDF)
Schneider Electric BSH0553P11A2A BSH Servo Motor.
| Product Type | Servo motor |
|---|---|
| Maximum Mechanical Speed | 9000 rpm |
| Shaft End | Kilitli |
| IP Rating | IP50 standart |
| Speed Feedback Resolution | 131072 nokta/dönüş |
| Brake | None |
| Mounting Support | Uluslararası standart flanş |
| Electrical Connection | Döndürülebilir sağa açılı konnektörler |
| Compatible Series | Lexium 05; Lexium 15; Lexium 32 |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 1.7 A |
| Maximum Continuous Current | 6.5 A |
| Switching Frequency | 8 kHz |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 9 mm |
| Shaft Length | 20 mm |
| Key Width | 12 mm |
| Feedback Type | Tek dönüşlü SinCos Hiperface |
| Motor Flange Size | 55 mm |
| Number of Motor Stacks | 3 |
| Torque Constant | 0,7 N.m/A @ 120 °C |
| Back EMF Constant | 41 V/krpm @ 120 °C |
| Number of Motor Poles | 3,0 |
| Rotor Inertia | 0,134 kg.cm² |
| Stator Resistance | 10,4 Ohm @ 20 °C |
| Stator Inductance | 13,02 mH @ 20 °C |
| Stator Electrical Time Constant | 2,4 ms @ 20 °C |
| Maximum Radial Force (Fr) | 190 N @ 8000 rpm; 200 N @ 7000 rpm; 210 N @ 6000 rpm; 230 N @ 5000 rpm; 240 N @ 4000 rpm; 270 N @ 3000 rpm; 310 N @ 2000 rpm; 390 N @ 1000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Cooling Type | Doğal konveksiyon |
| Length | 176.5 mm |
| Mean Ring Diameter | 40 mm |
| Mean Ring Depth | 2 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 5.5 mm |
| Mounting Hole Circle Diameter | 63 mm |
| Product Weight | 1.76 kg |
| Angular Accuracy Error | 1,4 ° |
| Hot Copper Temperature | 120 °C |
| Hot Magnet Temperature | 100 °C |
