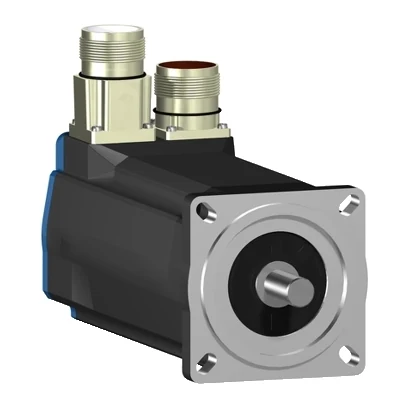

Schneider Electric BSH0703P11A2A BSH Servo Motor
- Brand: Schneider Electric
- SKU: BSH0703P11A2A
- MPN: BSH0703P11A2A
- Price: 94297.09 TRY + VAT · incl. VAT 113156.51 TRY
- Availability: Made to order
- Servo Motors
- Schneider Electric Servo Motors
- Selection guide: Servo Motors Selection Guide
- Schneider Electric BSH0703P11A2A Teknik Veri Föyü (PDF)
Schneider Electric BSH0703P11A2A BSH Servo Motor.
| Product Type | Servo motor |
|---|---|
| Maximum Mechanical Speed | 8000 rpm |
| Shaft End | Kilitli |
| IP Rating | IP50 standart |
| Speed Feedback Resolution | 131072 nokta/dönüş |
| Brake | None |
| Mounting Support | Uluslararası standart flanş |
| Electrical Connection | Döndürülebilir sağa açılı konnektörler |
| Compatible Series | Lexium 15; Lexium 05; Lexium 32 |
| Number of Phases | 3-Phase |
| Continuous Stall Current | 4.1 A |
| Maximum Continuous Current | 17 A |
| Switching Frequency | 8 kHz |
| Second Shaft End | Ikinci şaft ucu olmadan |
| Shaft Diameter | 14 mm |
| Shaft Length | 30 mm |
| Key Width | 20 mm |
| Feedback Type | Tek dönüşlü SinCos Hiperface |
| Motor Flange Size | 70 mm |
| Number of Motor Stacks | 3 |
| Torque Constant | 0,78 N.m/A @ 120 °C |
| Back EMF Constant | 49 V/krpm @ 120 °C |
| Number of Motor Poles | 3,0 |
| Rotor Inertia | 0,58 kg.cm² |
| Stator Resistance | 2,7 Ohm @ 20 °C |
| Stator Inductance | 7,3 mH @ 20 °C |
| Stator Electrical Time Constant | 4,82 ms @ 20 °C |
| Maximum Radial Force (Fr) | 400 N @ 6000 rpm; 430 N @ 5000 rpm; 460 N @ 4000 rpm; 510 N @ 3000 rpm; 580 N @ 2000 rpm; 730 N @ 1000 rpm |
| Maximum Axial Force (Fa) | 0,2 x Fr |
| Cooling Type | Doğal konveksiyon |
| Length | 220 mm |
| Mean Ring Diameter | 60 mm |
| Mean Ring Depth | 2.5 mm |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 5.5 mm |
| Mounting Hole Circle Diameter | 82 mm |
| Product Weight | 3.62 kg |
| Angular Accuracy Error | 1,4 ° |
| Hot Copper Temperature | 120 °C |
| Hot Magnet Temperature | 100 °C |
