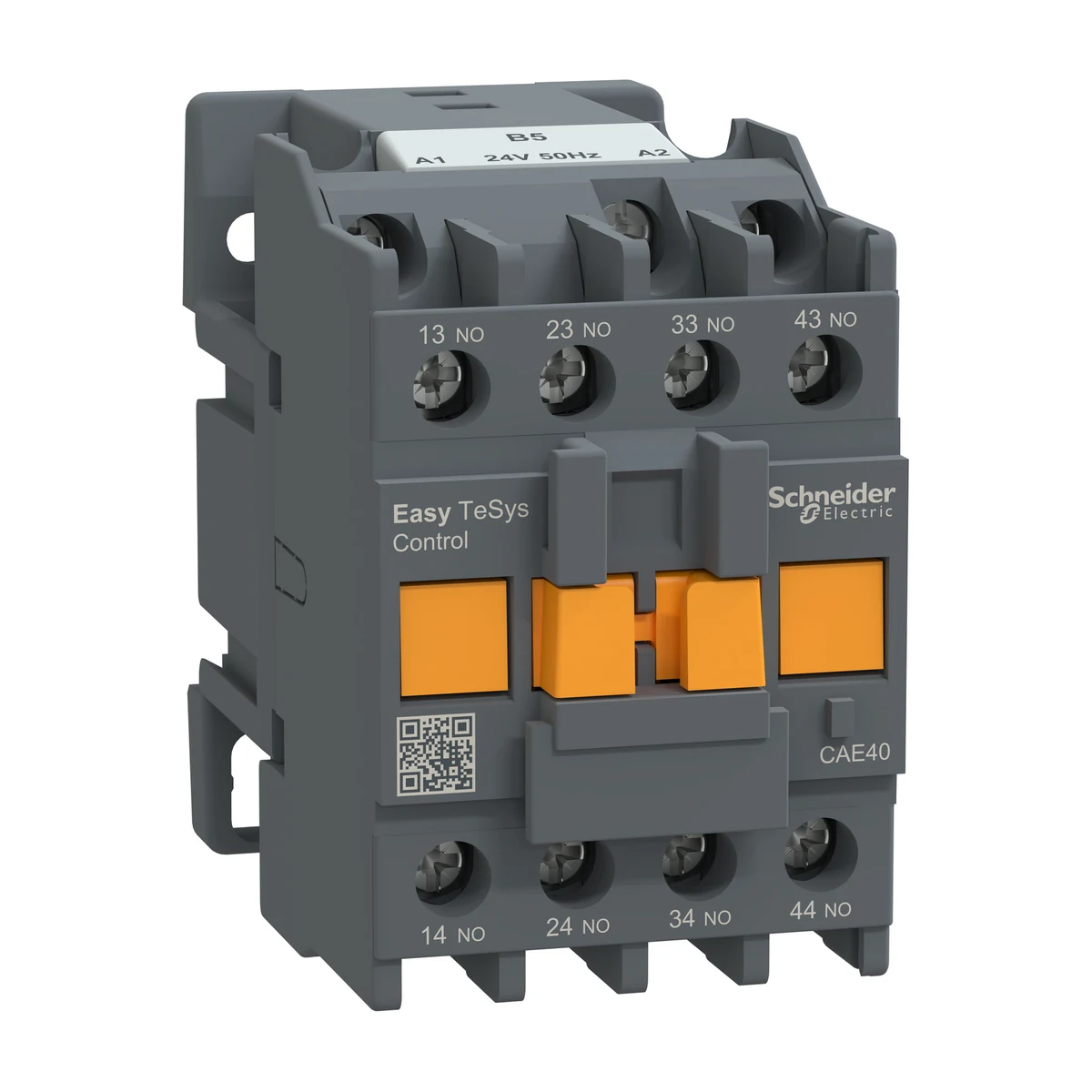

Schneider Electric CAE40B5 Auxiliary Contactor TVS 4NO
- Brand: Schneider Electric
- SKU: CAE40B5
- MPN: CAE40B5
- Price: 1167.59 TRY + VAT · incl. VAT 1401.11 TRY
- Availability: Made to order
- Auxiliary Contactors
- Schneider Electric Auxiliary Contactors
- Selection guide: Auxiliary Contactors Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric CAE40B5 Teknik Veri Föyü (PDF)
Schneider Electric CAE40B5 Auxiliary Contactor TVS 4NO. Technical specifications of this model: Series: EasyPact TVS Contact Arrangement: 4NO
| Contact Arrangement | 4NO |
|---|---|
| Series | EasyPact TVS |
| Product Type | Kontrol rölesi |
| Contactor Application | Kontrol devresi |
| Color | Grey (RAL 7011) |
| Utilization Category | AC-15; AC-14 |
| Power Pole Contact Arrangement | 4 NA |
| Rated Operational Voltage (Ue) | <= 690 V AC |
| Control Circuit Type | AC @ 50 Hz |
| Rated Control Circuit Voltage (Uc) | 24 V AC 50 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947) |
| Conventional Free Air Thermal Current (Ith) | 10 A (at 40 °C) |
| Rated Making Capacity (Irms) | 140 A @ 690 V AC (IEC 60947-5-1) |
| Rated Short-time Withstand Current Low Voltage (Icw) | 120 A - 500 ms; 140 A - 100 ms |
| Associated Fuse Rating | 10 A gG at 690 V (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-5-1) |
| Mounting Support | Ray; Plaka |
| Tightening Torque | 1,2 N.m - üzerinde vida kelepçesi terminalleri - tornavidayla Philips No 2 |
| Control Circuit Voltage Limits | Çalışma: 0,85…1,1 Uc at 50 Hz; Düşme: 0,3…0,6 Uc |
| Operating Time | 12…22 msn bobin enerjileme ve NA kapama; 6…17 msn bobin enerjisini kesme ve NA kapanışı |
| Mechanical Endurance | 10 Mcycles |
| Maximum Operating Rate (cycles/h) | 180 cyc/mn |
| Inrush Power (VA) | 70 VA 50 Hz (at 20 °C) |
| Hold-in Power Consumption (VA) | 8 VA 50 Hz (at 20 °C) |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Insulation Resistance | > 10 MOhm |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Product Weight | 0.28 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-5-1; GB/T 14048.1; GB/T 14048,5; IS/IEC 60947-1; IS/IEC 60947-5-1 |
| Certifications | CB Şeması; CCC; CE; EAC; BIS |
| IP Rating | IP2X |
| Operating Ambient Temperature | -20…70 °C |
| Storage Temperature | -60…80 °C |
| Operating Altitude | 3000 m olmadan |
