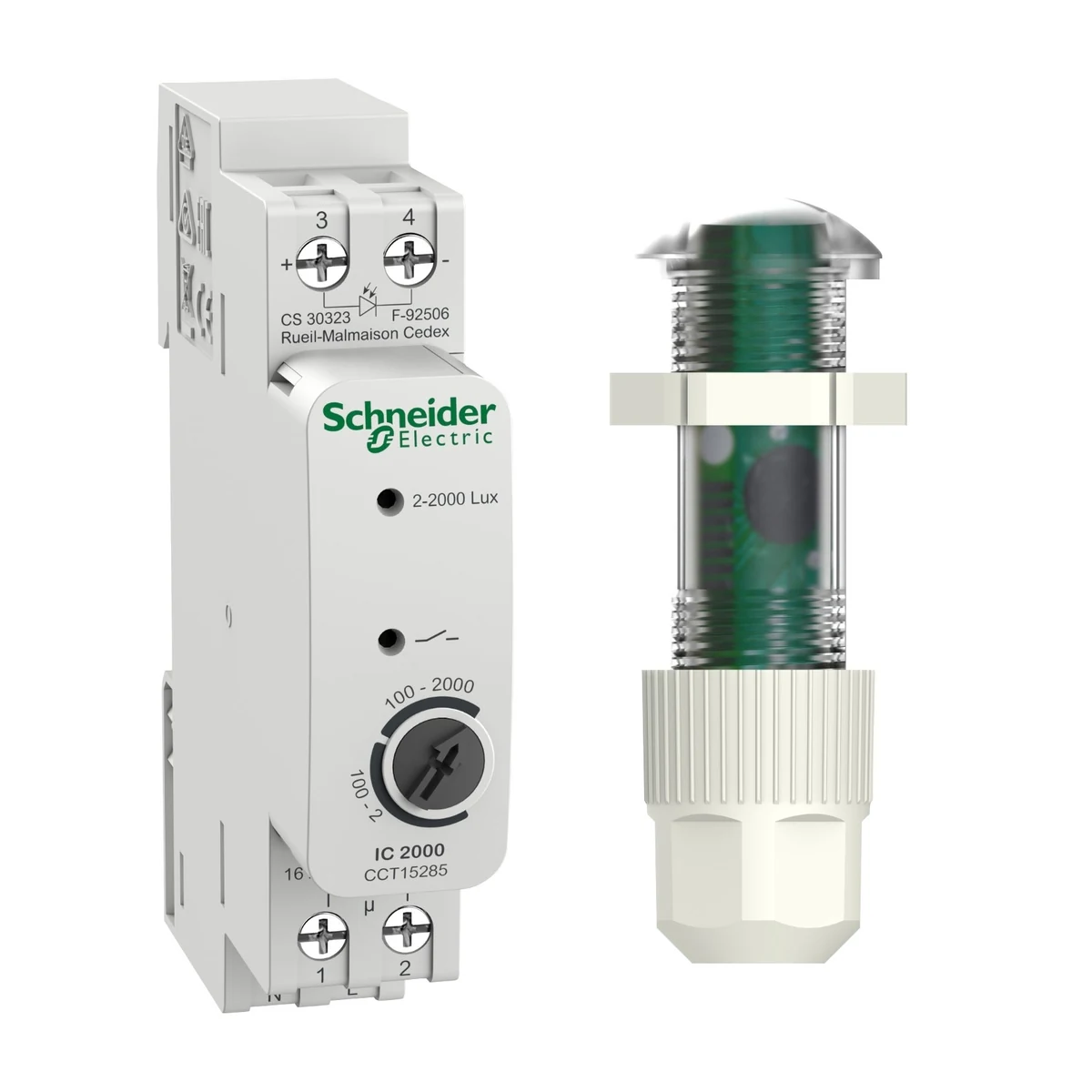

Schneider Electric CCT15285 IC2000 photocell, 2-2000 lux ayarlı,16A
- Brand: Schneider Electric
- SKU: CCT15285
- MPN: CCT15285
- Price: 7783.96 TRY + VAT · incl. VAT 9340.75 TRY
- Availability: Made to order
- Photocell Relays
- Selection guide: Control, Timer, and Safety Relays Selection Guide
- Schneider Electric CCT15285 Teknik Veri Föyü (PDF)
Schneider Electric CCT15285 IC2000 photocell, 2-2000 lux ayarlı,16A. Technical specifications of this model: Product Family: Acti9 Manufacturer Product Group: Control products
| Product Family | Acti9 |
|---|---|
| Manufacturer Product Group | Kontrol ürünleri |
| Series | Acti9 |
| Product Type | Alacakaranlık anahtarı |
| Device Application | Bina |
| Channel Count | 1 |
| Power Consumption (W) | 0,5 W standby |
| Rated Operational Voltage (Ue) | 230 V AC +10 % -15 % @ 50/60 Hz |
| Maximum Switching Current | 10 A - 250 V AC pf = 0,6; 16 A - 250 V AC pf = 1 |
| Minimum Switching Current | 10 mA 230 V AC; 100 mA 24 V AC/DC |
| Insulation Class | Class II |
| Accuracy | +/- 0.25 s/day 25 °C |
| Contact Arrangement | 1NO |
| Connection Terminals | 2 x 0,5…2,5 mm² vidalı terminaller katı veya esnek; 1 x 2,5 mm² vidalı terminaller solid or flexible with sleeve |
| Mounting Support | TH35 DIN rayı (EN 60715) |
| Height | 85.5 mm |
| Width | 18 mm |
| Depth | 67 mm |
| Product Weight | 87.5 g |
| Conformity Markings | CE |
| Control Type | Parlaklık algılamasıyla |
| Operating Ambient Temperature | -30…55 °C |
| Relative Humidity | 90 %, yoğuşmasız |
| IP Rating | IP20; IP66 (sensör)front; IP40 (sensör)arka |
| Standards | EN 60669-2-1 |
