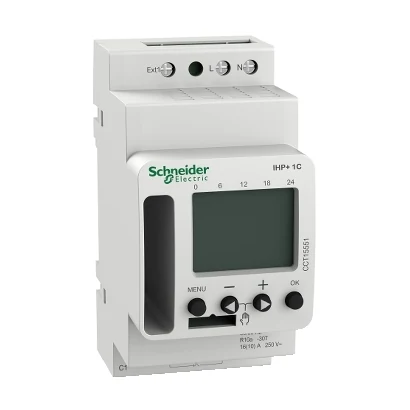

Schneider Electric CCT15551 IHP+ digital time switches 7 day/24 h, 1 contact, 45mm, 6 years of reserve
- Brand: Schneider Electric
- SKU: CCT15551
- MPN: CCT15551
- Price: 11564.74 TRY + VAT · incl. VAT 13877.69 TRY
- Availability: Made to order
- Programmable Timer Relays
- Selection guide: Programmable Timer Relays Selection Guide: Technical Criteria & Application Standards
- Schneider Electric CCT15551 Teknik Veri Föyü (PDF)
Schneider Electric CCT15551 IHP+ digital time switches 7 day/24 h, 1 contact, 45mm, 6 years of reserve. Technical specifications of this model: Manufacturer Product Group: Control products
| Manufacturer Product Group | Kontrol ürünleri |
|---|---|
| Series | Acti9 |
| Product Type | Programlanabilir dijital zaman anahtarı |
| Device Application | Bina |
| Channel Count | 1 |
| Power Consumption (W) | 0,5 W standby |
| Maximum Switching Current | 10 A - 250 V AC pf = 0,6; 16 A - 250 V AC pf = 1 |
| Minimum Switching Current | 10 mA 230 V AC; 100 mA 24 V AC/DC |
| Rated Operational Voltage (Ue) | 230 V AC +10 % -15 % @ 50/60 Hz |
| Insulation Class | Class II |
| Accuracy | +/- 0.25 s/day 25 °C |
| Display Type | Arkadan aydınlatmalı LCD |
| Displayed Information | Çalışma süresi sayacı |
| Connection Terminals | 2 x 0,5…2,5 mm² vidalı terminaller katı veya esnek; 1 x 2,5 mm² vidalı terminaller solid or flexible with sleeve |
| Mounting Support | TH35 DIN rayı (EN 60715) |
| Width | 45 mm |
| Height | 92.6 mm |
| Depth | 66.7 mm |
| Product Weight | 115 g |
| Conformity Markings | CE |
| Standards | EN 60730-2-7:2010 |
| Operating Ambient Temperature | -30…55 °C |
| Relative Humidity | 90 %, yoğuşmasız |
| IP Rating | IP20 |
