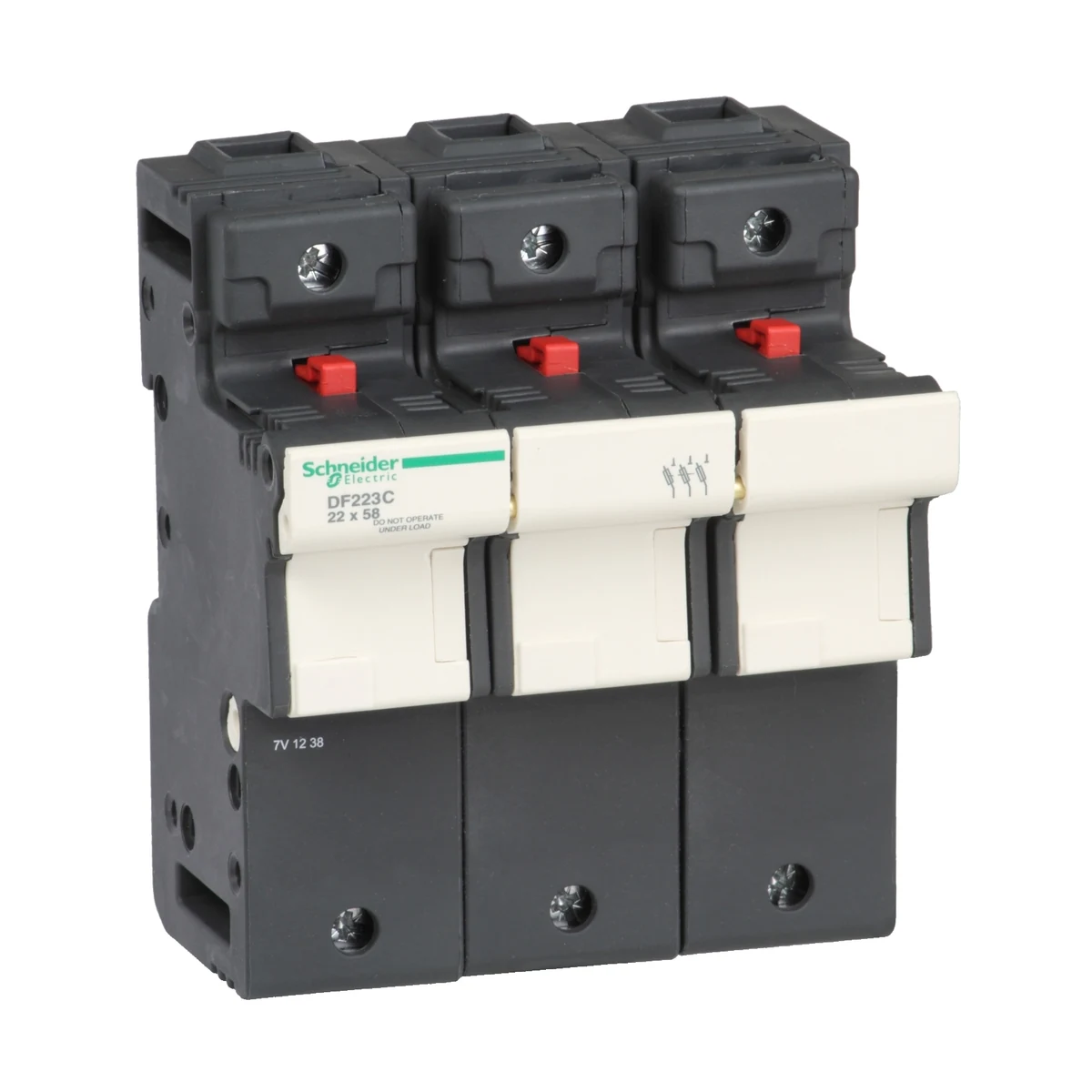

Schneider Electric DF223C TeSys DF Fuse Holder 3P 125A 22x58mm
- Brand: Schneider Electric
- SKU: DF223C
- MPN: DF223C
- Price: 11092.14 TRY + VAT · incl. VAT 13310.57 TRY
- Availability: In stock
- Fuse Holders
- Selection guide: Fuse Holders Selection Guide: Technical Criteria & Application Standards
- Schneider Electric DF223C Teknik Veri Föyü (PDF)
Schneider Electric DF223C TeSys DF Fuse Holder 3P 125A 22x58mm.
| Series | TeSys |
|---|---|
| Product Type | Sigorta taşıyıcı |
| Compatible Products | DF3FA fuse cartridge striker; DF3FN fuse cartridge striker; DF22AM yardımcı kontak bloğu |
| Pole Arrangement | 3P |
| Fuse Size | 22 x 58 mm |
| Fuse Type | 0…100 A, GG; 0…125 A, AM |
| Control Type | Feed-through |
| Rated Operational Voltage (Ue) | 690 V AC; 690 V DC |
| Rated Operational Current (Ie) | 100 A |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Short-Circuit Withstand Strength | 120 kA 400 V (IEC 60947-3); 120 kA 500 V (IEC 60947-3); 80 kA 690 V (IEC 60947-3) |
| Power Loss (W) | 9,50 W maximum power dissipation by fuse |
| Standards | EN/IEC 60947-3; EN/IEC 60269-2; UL 4248-1; CSA C22.2 No 4248-1 |
| Certifications | IEC; UL tarafından kabul görmüş; CSA; EAC |
| Mounting Support | 35 mm simetrik DIN rayı |
| Mounting Position | Dikey (tolerans: +/- 23°) |
| Tightening Torque | 4 N.m |
| Height | 127.5 mm |
| Width | 105 mm |
| Depth | 76.5 mm |
| Product Weight | 0.654 kg |
| Storage Temperature | -40…80 °C |
| IP Rating | IP20 |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
