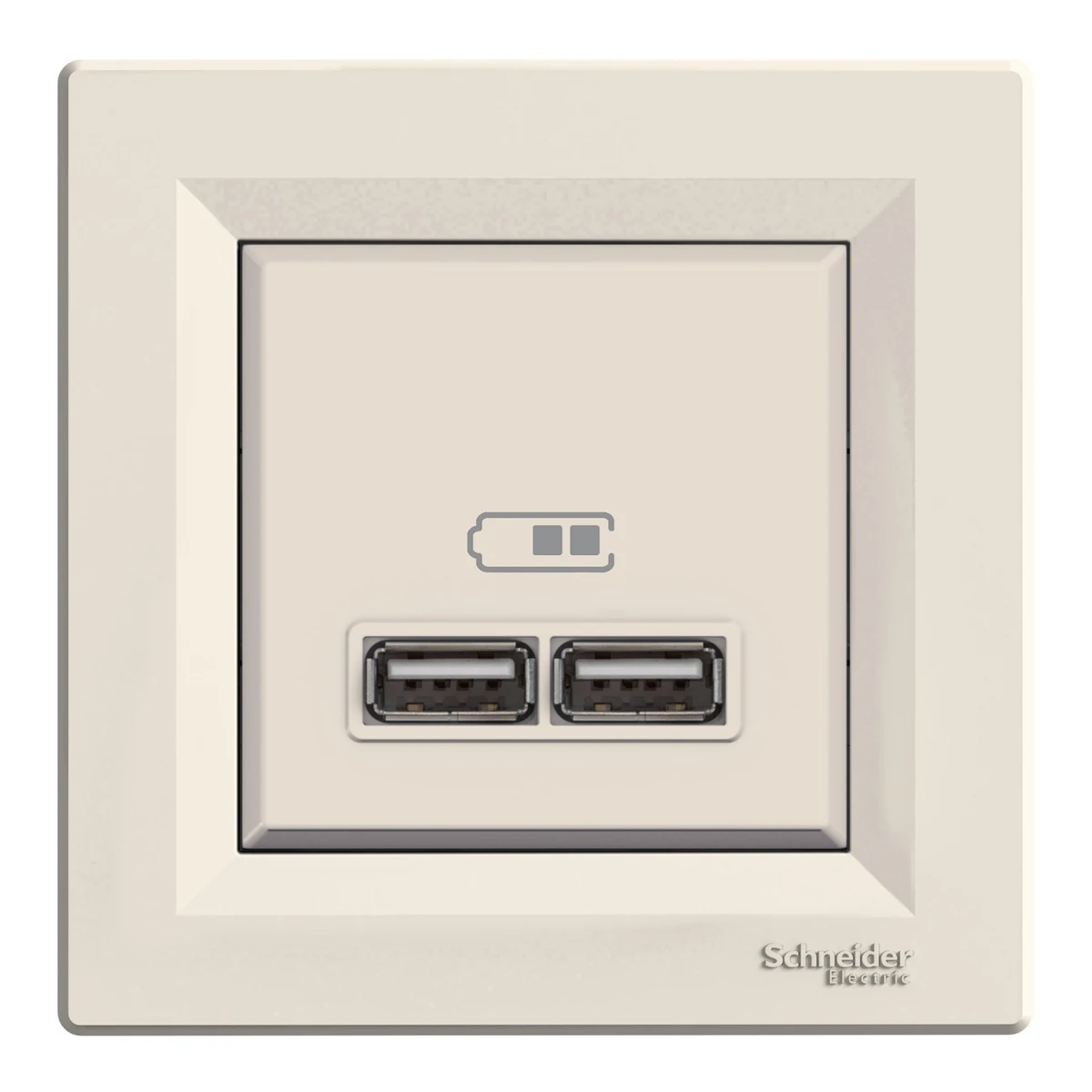

Schneider Electric EPH2700223 Asfora USB Cream
- Brand: Schneider Electric
- SKU: EPH2700223
- MPN: EPH2700223
- Price: 5015.00 TRY + VAT · incl. VAT 6018.00 TRY
- Availability: Made to order
- USB Charging Sockets
- Schneider Electric USB Charging Sockets
- Selection guide: USB Charging Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric EPH2700223 Teknik Veri Föyü (PDF)
Schneider Electric EPH2700223 Asfora USB Cream. Technical specifications of this model: Series: Asfora cream Color: Cream
| Color | Cream |
|---|---|
| Series | Asfora Krem |
| Product Type | USB şarj cihazı |
| Device Presentation | Angled |
| Device Mounting | Flush-mounted |
| Color Tone | Cream |
| Device Application | Şarj Cihazı |
| Fixing Method | Vidalarla; Pençelerle |
| Output Current | 2.1 A |
| Number of sockets | 2 |
| Integrated Connection Type | 2 USB 2.0 portu 5 V DC 2,1 A |
| Rated Operational Voltage (Ue) | 100…240 V AC +/- 10 % @ 50/60 Hz |
| Maximum Power Consumption (W) | 0.1 W |
| Material | ABS (akrilonitril butadiyen stiren): merkezi plaka; PC (polikarbonat) GF10 FR: muhafaza; PC (polikarbonat) GF10 FR: internal cover |
| Protection Type | Kısa devre koruması |
| Cable Stripping Length | 8 mm |
| Compatible Products | Mobile/tablet Mac iOS; Mobile/tablet Android; Mobile/tablet Windows |
| IK Impact Protection | IK04 |
| IP Rating | IP20 |
| Height | 83 mm |
| Width | 83 mm |
| Depth | 42 mm |
| Flush Mounting Depth | 30.8 mm |
| Standards | ETSI EN 301 489-4; EN 62684; TR 60950-1 |
| Operating Ambient Temperature | 0…40 °C |
| Storage Temperature | -5…50 °C |
| Certifications | EAC |
| Insulation Class | Class II |
