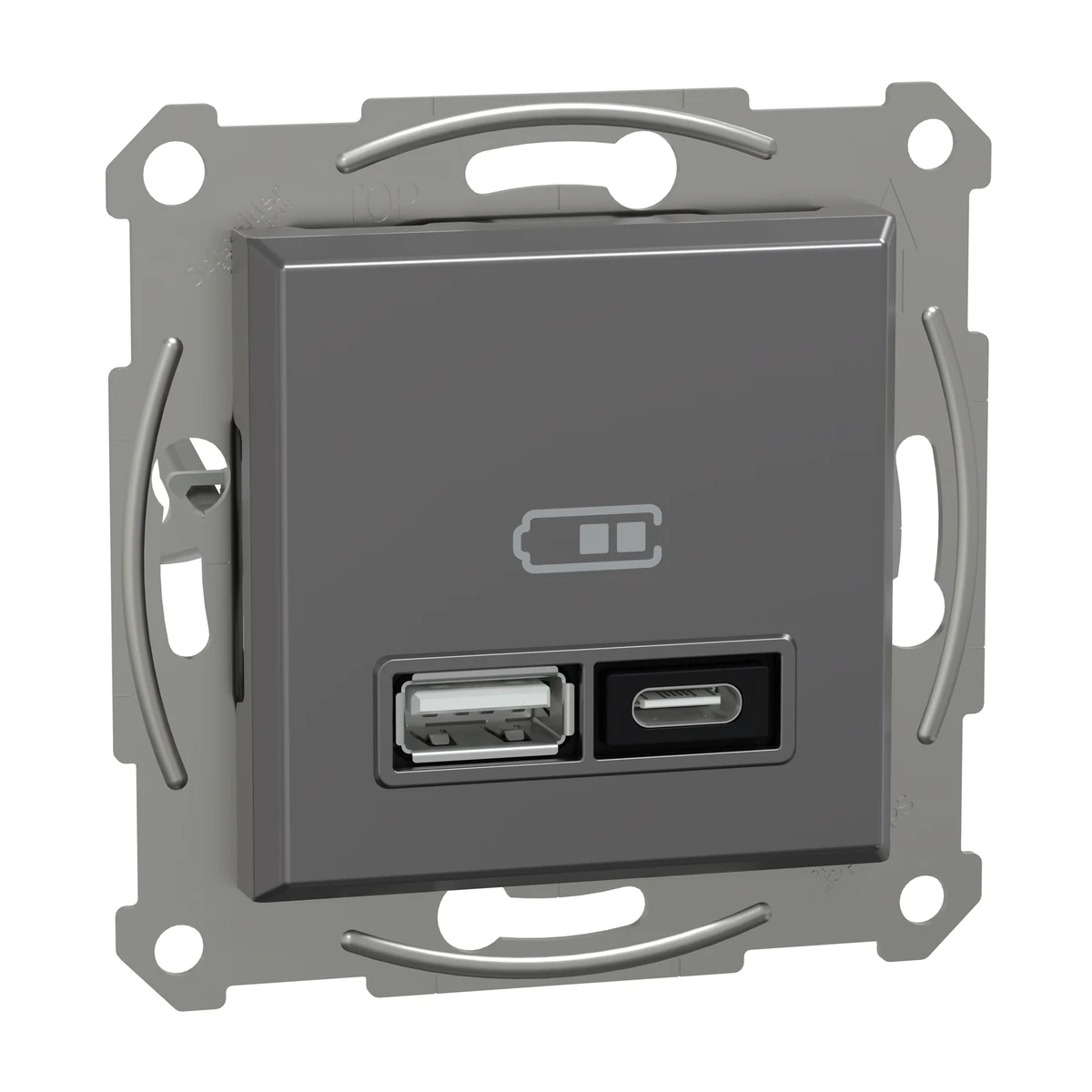

Schneider Electric EPH2700571 USB Socket, 21W, dual, Type A+C, anthracite
- Brand: Schneider Electric
- SKU: EPH2700571
- MPN: EPH2700571
- Price: 3258.00 TRY + VAT · incl. VAT 3909.60 TRY
- Availability: Made to order
- USB Charging Sockets
- Schneider Electric USB Charging Sockets
- Selection guide: USB Charging Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric EPH2700571 Teknik Veri Föyü (PDF)
Schneider Electric EPH2700571 USB Socket, 21W, dual, Type A+C, anthracite. Technical specifications of this model: Series: Asfora Plus Anthracite Color: Anthracite
| Color | Anthracite |
|---|---|
| Series | Asfora Plus Antrasit |
| Product Type | USB şarj cihazı |
| Device Presentation | Sabitleme çerçeveli mekanizma |
| Device Mounting | Flush-mounted |
| Color Tone | Anthracite |
| Device Application | Şarj Cihazı |
| Fixing Method | Vidalarla |
| Output Current | 3 A |
| Integrated Connection Type | 1 USB tip A 5 V DC 3 A; 1 USB type C <= 20 V DC 3 A |
| Rated Operational Voltage (Ue) | 220…240 V AC +/- 10 % @ 50/60 Hz |
| Maximum Power Consumption (W) | 0.05 W |
| Load Type | Power delivery |
| Material | ABS (akrilonitril butadiyen stiren): merkezi plaka; PC (polikarbonat) GF10 FR: muhafaza |
| Connector Type | USB A+C |
| Protection Type | Aşırı load ve kısa devre koruması; Çıkışta aşırı gerilim koruması; Sıcaklık artışı koruması |
| Cable Stripping Length | 8 mm |
| Compatible Products | Akıllı telefon; Mobile/tablet; Tablet PC; Power bank; Dijital kamera; Fare; Apple; HW; Samsun |
| IK Impact Protection | IK02 |
| IP Rating | IP20 |
| Height | 71 mm |
| Width | 71 mm |
| Depth | 42 mm |
| Flush Mounting Depth | 32 mm |
| Product Weight | 0.13 kg |
| Standards | ETSI EN 301 489-4 |
| Operating Ambient Temperature | 0…40 °C |
| Storage Temperature | -5…50 °C |
| Certifications | EAC |
| Insulation Class | Class II |
