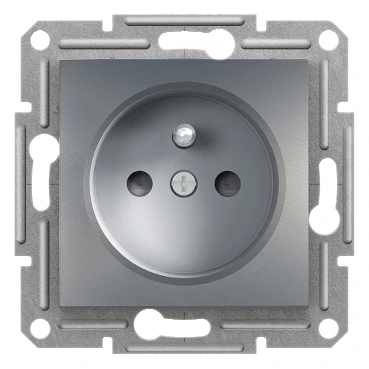

Schneider Electric EPH2800262 UPS Socket (child-protected)
- Brand: Schneider Electric
- SKU: EPH2800262
- MPN: EPH2800262
- Price: 606.10 TRY + VAT · incl. VAT 727.32 TRY
- Availability: Made to order
- UPS Wall Sockets
- Schneider Electric UPS Wall Sockets
- Selection guide: UPS Wall Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric EPH2800262 Teknik Veri Föyü (PDF)
Schneider Electric EPH2800262 UPS Socket (child-protected). Technical specifications of this model: Series: Asfora Plus Steel
| Series | Asfora Plus Çelik |
|---|---|
| Product Type | Socket |
| Number of sockets | 1 |
| Output Pole Configuration | 2P + E |
| Socket Earthing Information | Korumalı |
| Rated Current | 16 A |
| Color Tone | Steel |
| Device Presentation | Sabitleme çerçeveli ve kapak plakalı mekanizma |
| Device Mounting | Flush-mounted |
| Fixing Method | Vidalar ve tırnaklarla |
| Socket Standard | CEE 7/5 |
| Rated Operational Voltage (Ue) | 250 V |
| Mains Frequency | 50/60 Hz |
| Material | ABS + PC: merkezi plaka |
| Cable Stripping Length | 13 mm |
| Connection Terminals | Lift terminalleri |
| IP Rating | IP20 |
| IK Impact Protection | IK02 |
| Width | 71 mm |
| Height | 71 mm |
| Depth | 42 mm |
| Product Weight | 0.069 kg |
| Standards | IEC 60884-1 |
| Certifications | SEP-BBJ; TSE |
