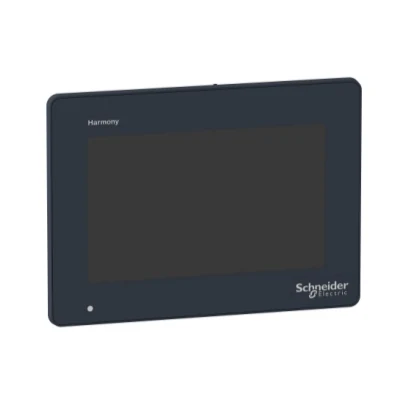

Schneider Electric HMIDT351 7" Touch Screen - WXGA
- Brand: Schneider Electric
- SKU: HMIDT351
- MPN: HMIDT351
- Price: 65552.05 TRY + VAT · incl. VAT 78662.46 TRY
- Availability: Made to order
- HMI and Operator Panels
- Schneider Electric HMI and Operator Panels
- Selection guide: What Is an HMI? Operator Panel Selection Guide
- Schneider Electric HMIDT351 Teknik Veri Föyü (PDF)
Schneider Electric HMIDT351 7" Touch Screen - WXGA.
| Series | Harmony GTU |
|---|---|
| Product Type | Gelişmiş dokunmatik panel |
| Rated Control Supply Voltage (Us) | 12…24 V DC güç besleme |
| Supply Voltage Limits | 10.8–28.8 V |
| Power Consumption (W) | 6.5 W |
| Display Type | Renkli TFT LCD |
| Display Resolution | 800 x 480 piksel WVGA |
| Width | 203.6 mm |
| Height | 148.6 mm |
| Depth | 67 mm |
| Product Weight | 1.2 kg |
| IP Rating | Ön panel: IP66; Ön panel: IP67 |
| NEMA protection rating | NEMA 4X ön panel |
| Standards | UL 508; ANSI/ISA 12-12-01; Sınıf I bölüm 2 CSA C22.2 No 213; CSA C22.2 No 142; IEC 61132-2 |
| Certifications | CULus; RCM; CE; KC; UKCA; UKEX |
| Operating Ambient Temperature | 0…60 °C (IEC 61131-2) |
| Storage Temperature | -20…60 °C |
| Relative Humidity | 10…90 % yoğuşmasız |
| Operating Altitude | 2000 m |
| Vibration Resistance | 3,5 mm sabit genlik[Alan](f =[Alan]5…9 Hz) (IEC 61131-2); 9,8 m/s²[Alan](f =[Alan]9…150 Hz) (IEC 61131-2) |
| Shock Resistance | 147 m/s² (IEC 61131-2) |
| Electromagnetic Compatibility | Elektrostatik deşarj bağışıklık testi seviye 3 (IEC 61000-4-2) |
