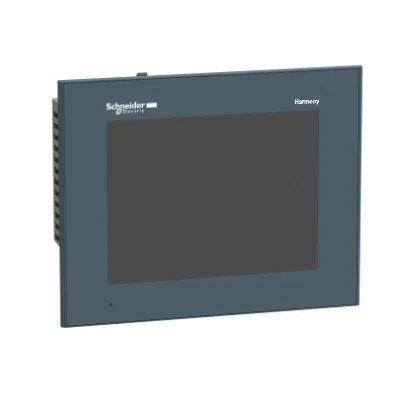

Schneider Electric HMIGTO4310 7.5" TFT LCD 65K Color VGA 2 x CoM, 2 x USB, 1 x Ethernet 96 Mb
- Brand: Schneider Electric
- SKU: HMIGTO4310
- MPN: HMIGTO4310
- Price: 115202.58 TRY + VAT · incl. VAT 138243.10 TRY
- Availability: Made to order
- HMI and Operator Panels
- Schneider Electric HMI and Operator Panels
- Selection guide: What Is an HMI? Operator Panel Selection Guide
- Schneider Electric HMIGTO4310 Teknik Veri Föyü (PDF)
Schneider Electric HMIGTO4310 7.5" TFT LCD 65K Color VGA 2 x CoM, 2 x USB, 1 x Ethernet 96 Mb.
| Series | Harmony GTO |
|---|---|
| Product Type | Gelişmiş dokunmatik panel |
| Supply | Harici kaynak |
| Display Type | Arkadan aydınlatmalı renkli TFT LCD |
| Display Resolution | 640 x 480 pixels VGA |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Supply Voltage Limits | 19.2–28.8 V |
| Power Consumption (W) | 8 W harici cihazlara güç sağlanmazken; 5 W arka aydınlatma KAPALIYKEN; 5,5 W arka aydınlatma karartılmışken; 12 W |
| Fixing Method | 4 vida kelepçesiyle |
| Housing Material | PPT |
| Cooling Type | Doğal konveksiyon |
| Width | 218 mm |
| Height | 173 mm |
| Depth | 60 mm |
| Product Weight | 1.2 kg |
| Standards | IEC 61131-2; IEC 61000-6-2; UL 508 |
| Certifications | CE; cULus; KCC; C-Tick; UKCA; UKEX |
| Operating Ambient Temperature | 0…55 °C |
| Storage Temperature | -20…60 °C |
| Relative Humidity | 10…90 % yoğuşmasız |
| Operating Altitude | < 2000 m |
| IP Rating | IP20 (IEC 60529 (arka panel)); IP65 (IEC 60529 (ön panel)) |
| NEMA protection rating | NEMA 4X ön panel (iç mekan kullanımı) |
| Shock Resistance | 147 m/s² X, Y ve Z yönlerinde 3 takoz (IEC 61131-2) |
| Electrostatic Discharge Immunity | 6 kV kontak deşarjı (IEC 61000-4-2 seviye 3) |
