Schneider Electric HMIZMDARX Multi-Display Adapter
- Brand: Schneider Electric
- SKU: HMIZMDARX
- MPN: HMIZMDARX
- Price: 83177.15 TRY + VAT · incl. VAT 99812.58 TRY
- Availability: Made to order
- HMI and Operator Panels
- Schneider Electric HMI and Operator Panels
- Selection guide: What Is an HMI? Operator Panel Selection Guide
- Schneider Electric HMIZMDARX Teknik Veri Föyü (PDF)

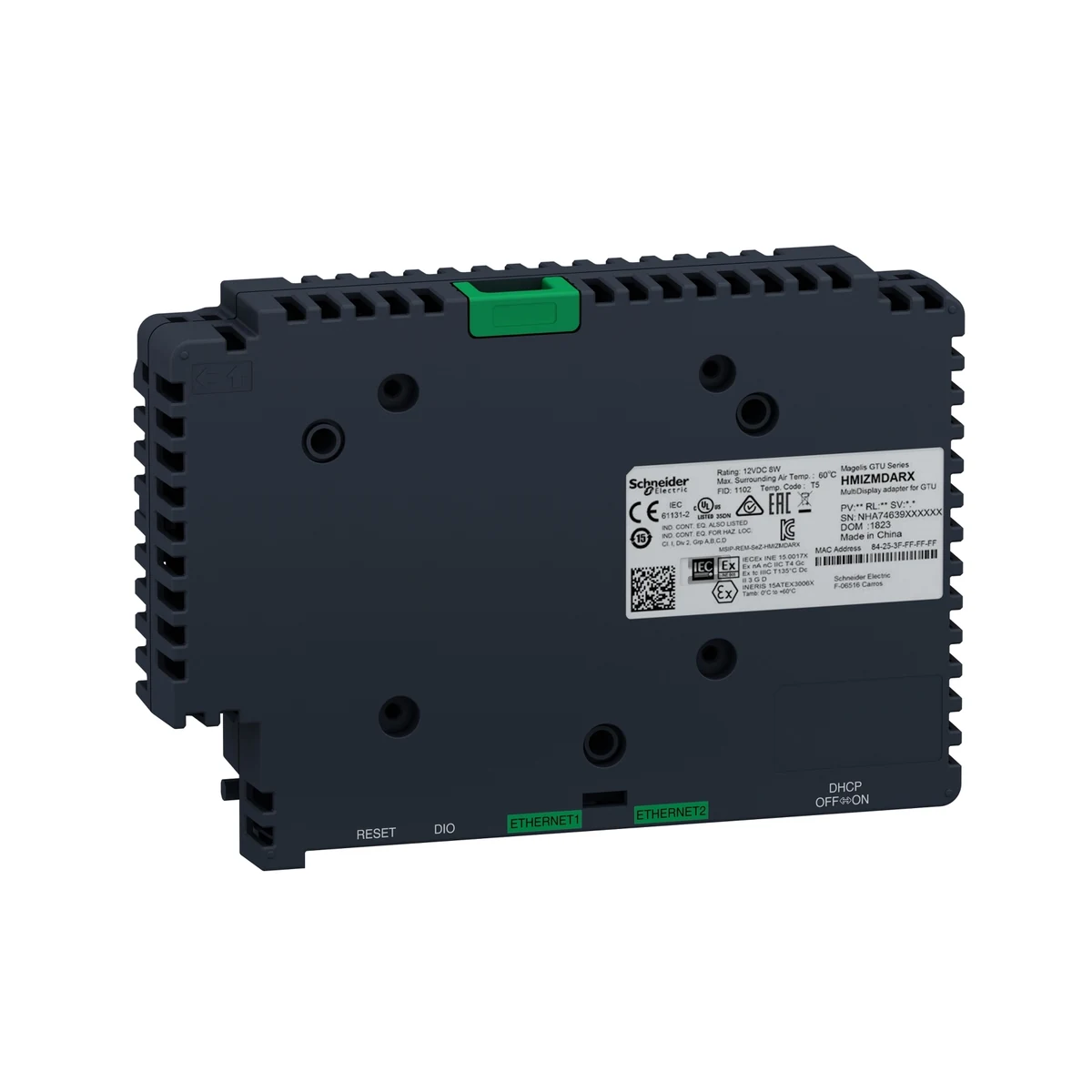

Schneider Electric HMIZMDARX Multi-Display Adapter.
| Series | Harmony GTU |
|---|---|
| Accessory Type | Adaptör |
| Accessory Category | Uyarlama aksesuarı |
| Compatible Products | Harmony GTU open; Harmony iPC industrial PCs |
| Rated Control Supply Voltage (Us) | 12 V DC modül besleme |
| Input Voltage | 12 V DC modül besleme; 24 V DC |
| Integrated Connection Type | 1 DIO tip terminal bloğu 3 inputs + 1 output; 2 Ethernet TCP/IP tip RJ45 jack |
| Output Voltage | 24 V |
| Output Current | 50 mA |
| Power Consumption (W) | 8 W |
| Product Weight | 0.8 kg |
| Cooling Type | Doğal |
| Height | 131 mm |
| Depth | 35 mm |
| Width | 188 mm |
| Pollution Degree | 2 |
| Operating Ambient Temperature | 0…60 °C |
| Storage Temperature | -20…60 °C |
| Operating Altitude | 2000 m |
| Certifications | UL 508; CSA C22-2 No 142; CSA C22-2 No 213; cULus HazLoc Sınıf I Bölüm 2 ANSI/ISA 12-12-01; IEC-Ex; ATEX zone 2/22; EAC; UKCA; UKEX |
| Relative Humidity | 10…90 % yoğuşmasız |
| Shock Resistance | 147 m/s² için X, Y, Z directions for 3 times (IEC 61131-2) |
| Fast Transient Immunity (EFT) | 1 kV (IEC 61000-4-4 (sinyal portları)); 2 kV (IEC 61000-4-4 (güç portları)) |
| Environmental Conditions | Korozif gazsız; Toz geçirmez |
