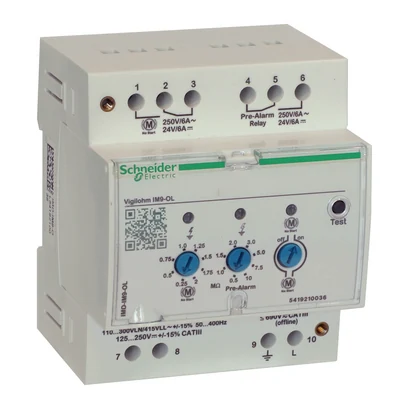

Schneider Electric IMD-IM9-OL Insulation monitoring device for motors (OFF-Line) 110 / 415 Vac
- Brand: Schneider Electric
- SKU: IMD-IM9-OL
- MPN: IMD-IM9-OL
- Price: 23518.67 TRY + VAT · incl. VAT 28222.40 TRY
- Availability: Made to order
- Insulation Monitoring Devices
- Schneider Electric IMD-IM9-OL Teknik Veri Föyü (PDF)
Schneider Electric IMD-IM9-OL Insulation monitoring device for motors (OFF-Line) 110 / 415 Vac.
| Series | Vigilohm |
|---|---|
| Product Type | Yalıtım izleme cihazı |
| Earthing System | TT; TN-S; IT |
| Electrical Circuit Type | Offline device |
| Measurement Type | Stator yalıtım direnci, aralik: 250 kOhm...10 MOhm, dogruluk: +/- %15 |
| Response Time | 2 s 100 % |
| Overvoltage category | III |
| IP Rating | Muhafaza: IP20; Ön yüz: IP40 |
| Material | Thermoplastik; Iç mekan |
| Operating Altitude | <= 3000 m |
| Relative Humidity | 0…92 % |
| Operating Ambient Temperature | -25…55 °C |
| Storage Temperature | -40…70 °C |
| Pollution Degree | 2 |
| Mounting Method | Takılabilir (DIN rayı); Sıva altı monte (panel) |
| Mounting Position | Yatay; Dikey |
| Connection Terminals | Tünel tipi terminaller 0,2…2,5 mm² |
| Product Weight | 0.2 kg |
| Height | 90 mm |
| Width | 71 mm |
| Depth | 67,5 mm; Ekransız |
| Signalling Contact Arrangement | 1 K/A standart; 1 K/A hata kurtarma |
| Signalling Circuit Voltage | 250 V - AC @ 6 A; 12…24 V - DC @ 6 A |
| Communication Protocol | - |
| Rated Control Supply Voltage (Us) | 110…415 V AC 50/60/400 Hz tolerans: +/- 15 %; 125…250 V DC tolerans: +/- 15 % |
| Power Consumption | 7 VA |
| Certifications | EAC; DNV; CE; RCM; EU-RO MR TA |
| Mechanical Endurance | Long-term storage class 1M11 (IEC 60721-3-1); Transport class 2M4 (IEC 60721-3-2); Stationary use class 3M11 (IEC 60721-3-3) |
