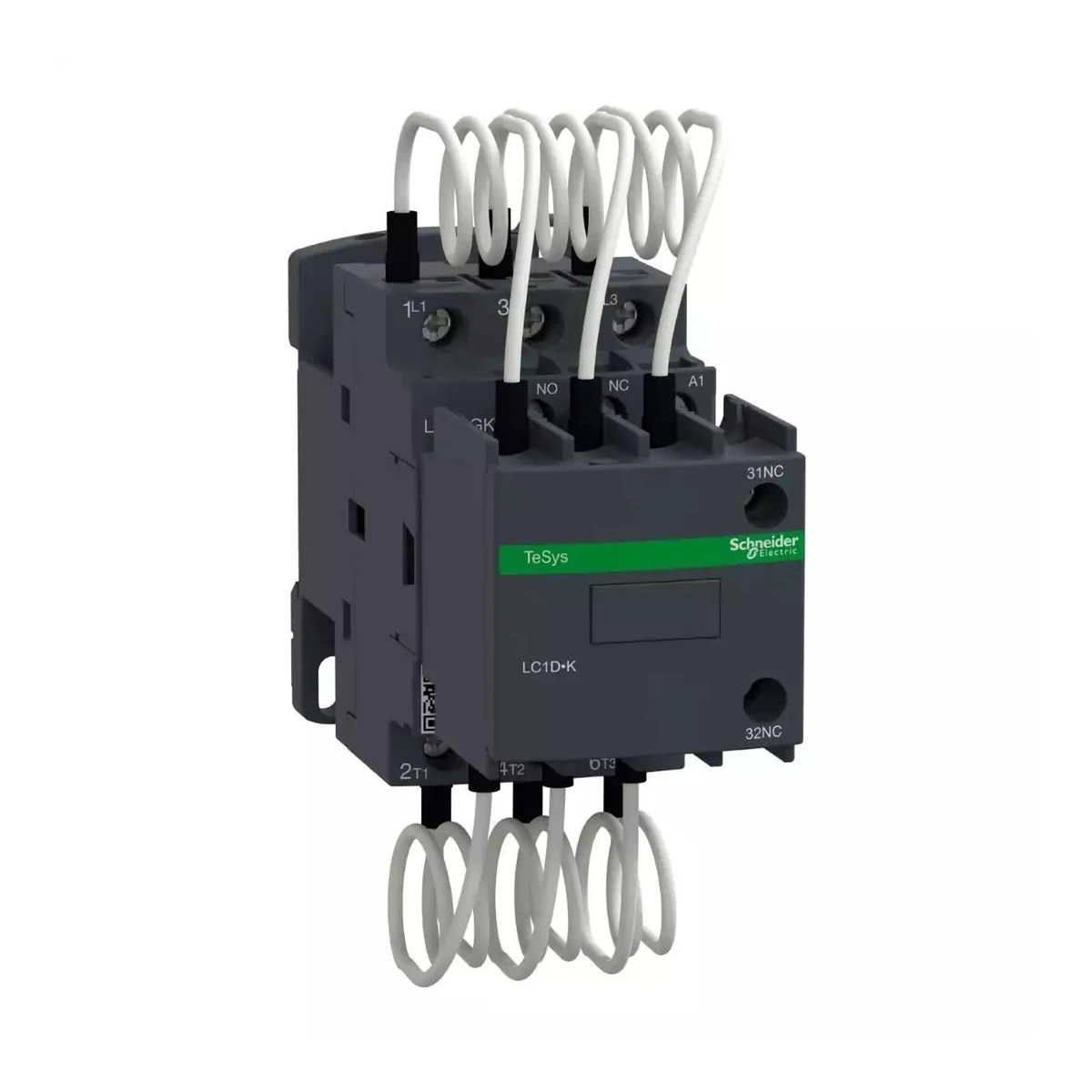

Schneider Electric LC1DGKM7 TeSys Deca Power Factor Correction Contactor 16.7kVAr 220V
- Brand: Schneider Electric
- SKU: LC1DGKM7
- MPN: LC1DGKM7
- Price: 6477.37 TRY + VAT · incl. VAT 7772.84 TRY
- Availability: In stock
- Contactors
- Schneider Electric Contactors
- Selection guide: Contactors Selection Guide
- Schneider Electric LC1DGKM7 Teknik Veri Föyü (PDF)
Schneider Electric LC1DGKM7 TeSys Deca PF Correction. Contactor 16.7kVAr 220V. Technical specifications of this model: Series: TeSys Deca
| Series | TeSys Deca |
|---|---|
| Product Type | Kapasitör görevli kontaktör |
| Device Application | Kontrol |
| Contactor Application | Güç faktörü düzeltme |
| Utilization Category | AC-6B |
| Pole Arrangement | 3P |
| Power Pole Contact Arrangement | 3 NA |
| Rated Operational Voltage (Ue) | Güç devresi: 690 V AC 50/60 Hz |
| Reactive Power | 9,5 kvar @ 230 V AC 50 Hz @ <60 °C; 16,7 kvar @ 400 V AC 50 Hz @ <60 °C; 18 kvar @ 440 V AC 50 Hz @ <60 °C; 28,5 kvar @ 690 V AC 50 Hz @ <60 °C |
| Control Circuit Type | AC @ 50/60 Hz |
| Rated Control Circuit Voltage (Uc) | 220 V AC 50/60 Hz |
| Auxiliary contact configuration | 1 NA + 2 NK anlık |
| Electrical Endurance | 300000 cycles Ue'de 400 V; 200000 cycles Ue'de 690 V |
| Mounting Support | DIN rayı; Plaka |
| Standards | EN/IEC 60947-1; EN/IEC 60947-4-1; IEC 60335-1 |
| Certifications | IECEE CB Şeması; UKCA |
| Tightening Torque | Kontrol devresi: 1,7 N.m - üzerinde vida kelepçesi terminalleri; Güç devresi: 2,5 N.m - üzerinde vida kelepçesi terminalleri |
| Maximum Operating Rate (cycles/h) | 240 cyc/h |
| Auxiliary Contact Type | tip mekanik olarak bağlantılı 1 NA + 2 NK (IEC 60947-5-1) |
| IP Rating | IP20 ön yüz (IEC 60529) |
| Operating Ambient Temperature | -5…60 °C |
| Storage Temperature | -60…80 °C |
| Operating Altitude | 0–3000 m |
| Height | 125 mm |
| Width | 45 mm |
| Depth | 127 mm |
| Product Weight | 0.6 kg |
