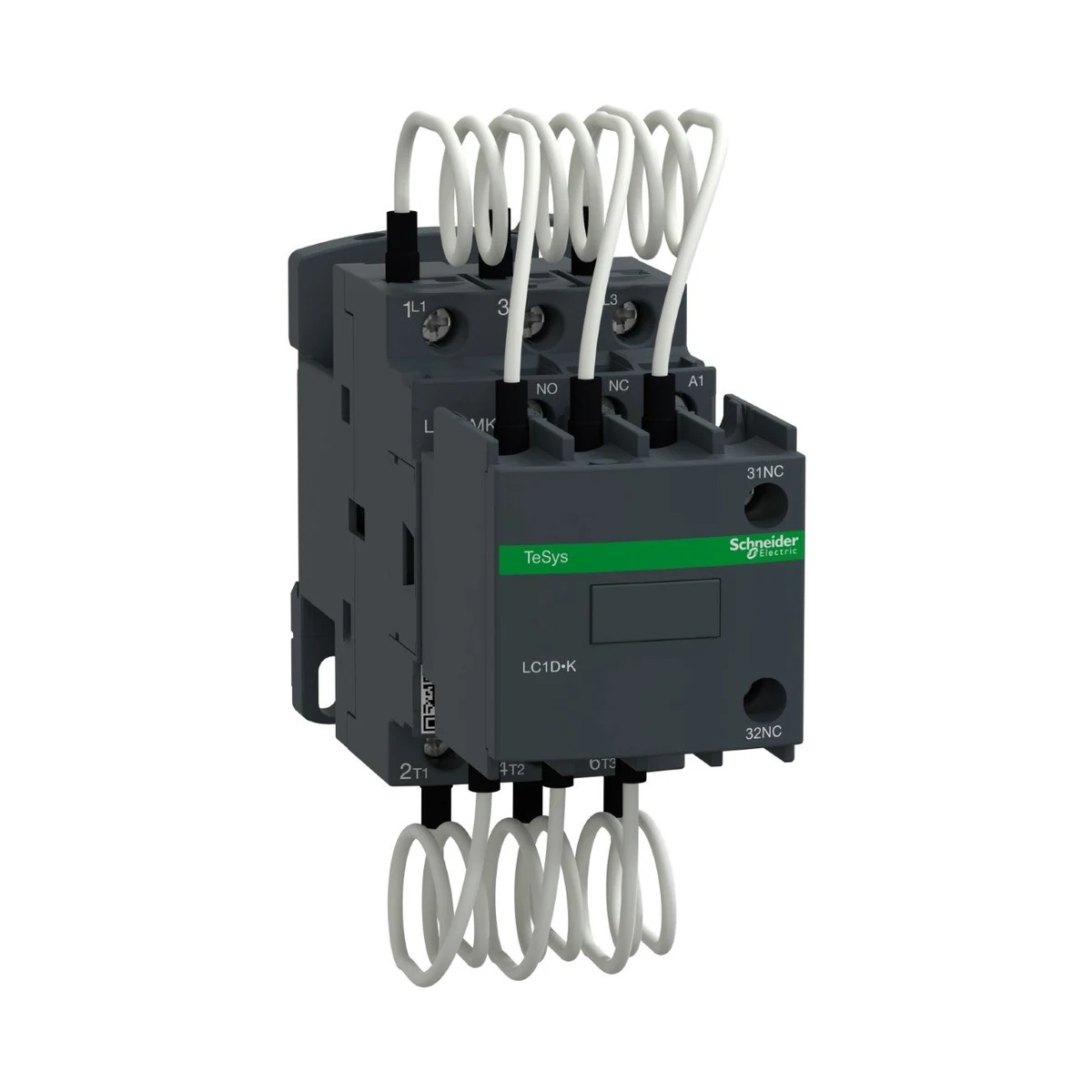

Schneider Electric LC1DMKV7 TeSys Deca Power Factor Correction Contactor 25kVAr 400VAC
- Brand: Schneider Electric
- SKU: LC1DMKV7
- MPN: LC1DMKV7
- Price: 8563.47 TRY + VAT · incl. VAT 10276.16 TRY
- Availability: Made to order
- Contactors
- Schneider Electric Contactors
- Selection guide: Contactors Selection Guide
Schneider Electric LC1DMKV7 TeSys Deca PF Correction. Contactor 25kVAr 400VAC. Technical specifications of this model: Mounting Support: DIN rail, plate Product Weight: 0.63 kg Auxiliary contact arrangement: 1 NO + 2 NC instantaneous Storage Environmental Conditions: -60-80 °C Height: 125 mm Control circuit type: AC at 50/60 Hz Maximum operating speed: 240 cyc/h Pole arrangement: 3P Width: 45 mm Nominal Operating Ambient Temperature: -5-60 °C Product Type: TeSys Deca Device Position in System: in delta interruption, line interruption Utilization category: AC-6B Depth: 127 mm Contactor application: power factor correction Device Application: Control Auxiliary contact type: mechanically linked type 1 NO + 2 NC, complies with IEC 60947-5-1 Operating Altitude: 0...3000 m Series: TeSys,TeSys Deca Coil Voltage: 400VAC Pole contact arrangement: 3 NO Rated Operational Voltage: power circuit: 690 V AC 50/60 Hz Product certificates: IECEE CB Scheme, UKCA Product name: TeSys LC1D.K,TeSys Deca
| Rated Operational Voltage | güç devresi: 690 V AC 50/60 Hz |
|---|---|
| Coil Voltage | 400 V AC |
| Operating Altitude | 0–3000 m |
| Device Application | Kontrol |
| Storage Environmental Conditions | -60-80 °C |
| Depth | 127 mm |
| Width | 45 mm |
| Contactor Application | Güç faktörü düzeltme |
| Control Circuit Type | AC -de 50/60 Hz |
| Utilization Category | AC-6B |
| Pole Arrangement | 3P |
| Pole Contact Arrangement | 3 NA |
| Maximum Operating Speed | 240 cyc/h |
| Mounting Support | DIN rayı, plaka |
| Nominal Operating Ambient Temperature | -5-60 °C |
| Series | TeSys,TeSys Deca |
| Device Position in System | delta kesintisi içinde,hat kesintisi |
| Product Name | TeSys LC1D.K,TeSys Deca |
| Product Weight | 0.63 kg |
| Product Certificates | IECEE CB Şeması, UKCA |
| Product Type | TeSys Deca |
| Auxiliary Contact Arrangement | 1 NA + 2 NK anlık |
| Auxiliary Contact Type | tip mekanik olarak bağlantılı 1 NA + 2 NK 'e uygunIEC 60947-5-1 |
| Height | 125 mm |
