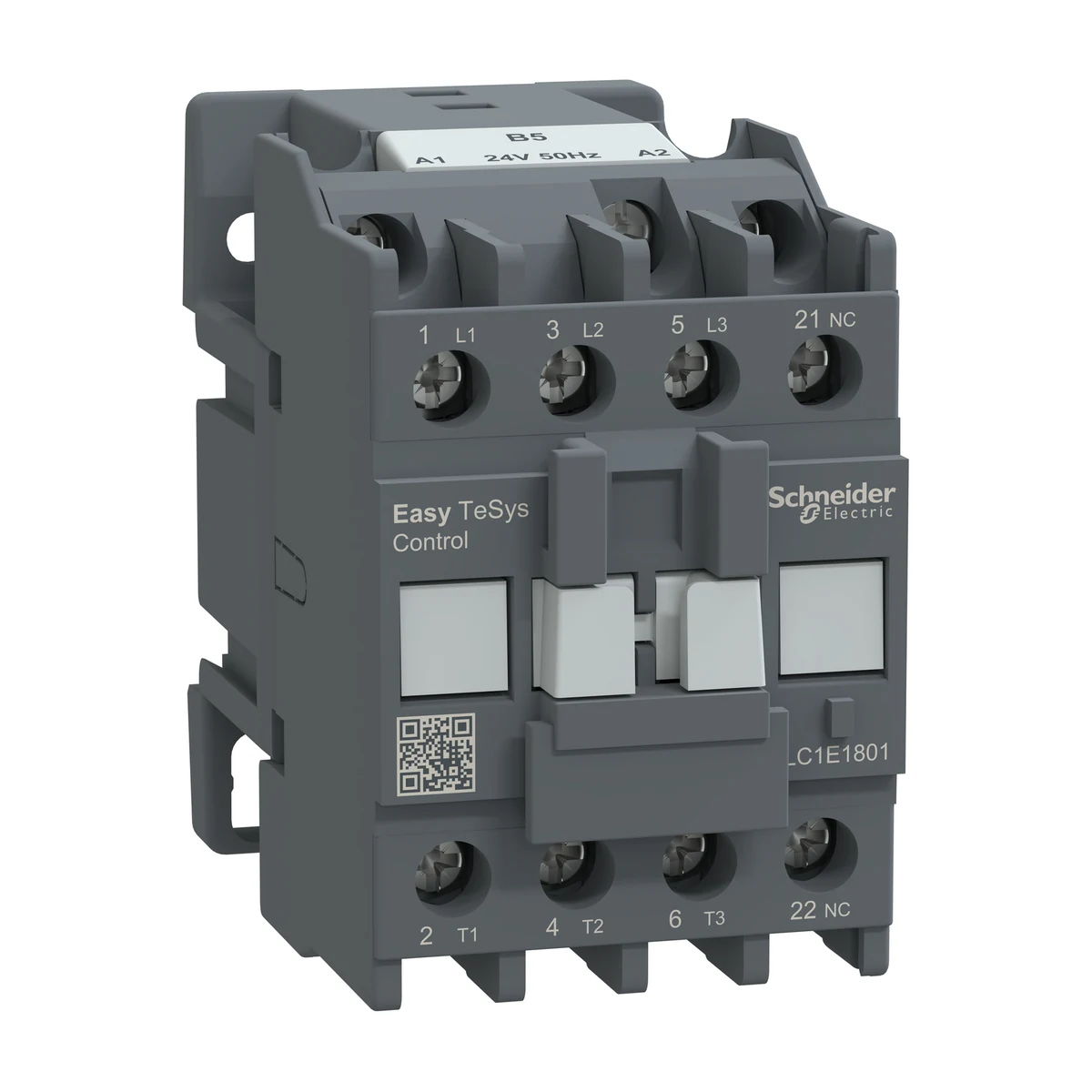

Schneider Electric LC1E1801B5 3-Pole Contactor TVS 1NC 7.5kW
- Brand: Schneider Electric
- SKU: LC1E1801B5
- MPN: LC1E1801B5
- Price: 1873.71 TRY + VAT · incl. VAT 2248.45 TRY
- Availability: In stock
- Contactors
- Schneider Electric Contactors
- Selection guide: Contactors Selection Guide
- Schneider Electric LC1E1801B5 Teknik Veri Föyü (PDF)
Schneider Electric LC1E1801B5 3-Pole Contactor TVS 1NC 7.5kW. Technical specifications of this model: Series: EasyPact TVS Contact Arrangement: 1NC
| Contact Arrangement | 1NC |
|---|---|
| Series | EasyPact TVS |
| Product Type | Kontaktör |
| Contactor Application | Motor kontrol; Direnç loadü |
| Utilization Category | AC-3; AC-3e; AC-1 |
| Pole Arrangement | 3P |
| Rated Operational Voltage (Ue) | Güç devresi: <= 690 V AC 50/60 Hz |
| Rated Control Circuit Voltage (Uc) | 24 V AC 50 Hz |
| Motor Power (kW) | 4 kW at 220/230 V AC 50/60 Hz; 7,5 kW at 380/400 V AC; 9 kW at 415/440 V AC; 9 kW at 500 V AC; 9 kW at 660/690 V AC; 10 kW at 660…690 V |
| Power Pole Contact Arrangement | 3 NA |
| Conventional Free Air Thermal Current (Ith) | 32 A (at 55 °C) for güç devresi |
| Rated Making Capacity (Irms) | 234 A at 440 V AC for güç devresi (IEC 60947-4-1) |
| Rated Breaking Capacity | 153 A at 440 V for güç devresi (IEC 60947) |
| Rated Short-time Withstand Current Low Voltage (Icw) | 145 A 40 °C - 10 s for güç devresi; 84 A 40 °C - 60 s for güç devresi; 40 A 40 °C - 600 s for güç devresi |
| Average Impedance | 2,5 mOhm - Ith 32 A 50 Hz for güç devresi |
| Power Loss per Pole | 0,81 W AC-3; 2,6 W AC-1 |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-4-1) |
| Overvoltage category | III |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV bobin güç devresine bağlı değil (IEC 60947) |
| Mechanical Endurance | 10000000 cycles |
| Electrical Endurance | 300000 cycles AC-1; 1200000 cycles AC-3 |
| Control Circuit Type | AC @ 50 Hz |
| Control Circuit Voltage Limits | 0,85…1,1 Uc (-5…55 °C):çalışma 50 Hz; 0,3…0,6 Uc (-5…55 °C):düşme 50 Hz |
| Inrush Power (VA) | 95 VA 50 Hz cos phi 0,75 (at 20 °C); 95 VA 60 Hz cos phi 0,75 (at 20 °C) |
| Hold-in Power Consumption (VA) | 8,3 VA 50 Hz cos phi 0,3 (at 20 °C); 8,5 VA 60 Hz cos phi 0,3 (at 20 °C) |
| Heat Dissipation | Kontrol devresi için 2…3 W |
| Operating Time | 12…22 msn kapanışta; 4…19 msn açılışta |
| Maximum Operating Rate (cycles/h) | 1800 cyc/h @ <60 °C |
| Tightening Torque | Güç devresi: 1,2 N.m; Kontrol devresi: 1,2 N.m |
| Auxiliary contact configuration | 1 NK |
| Non-Overlap Time | 1,5 ms enerjilemede NK ve NA kontağı arasında garanti edilen; 1,5 ms enerji kesmede NK ve NA kontağı arasında garanti edilen |
| Mounting Support | Plaka; DIN rayı |
| Certifications | CB Şeması; CCC; CE; EAC; BIS |
| IP Rating | IP2X |
| Operating Altitude | 3000 m olmadan |
| Fire Resistance | 850 °C (IEC 60695-2-1) |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
