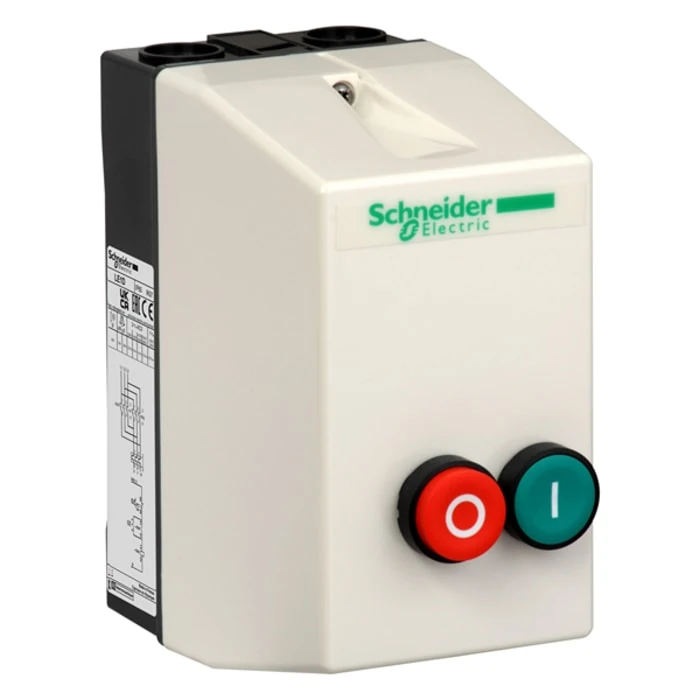

Schneider Electric LE1D18Q7 TeSys LE Enclosed Starter 18A 380VAC
- Brand: Schneider Electric
- SKU: LE1D18Q7
- MPN: LE1D18Q7
- Price: 9165.61 TRY + VAT · incl. VAT 10998.73 TRY
- Availability: Made to order
- Motor Starters
- Schneider Electric Motor Starters
- Selection guide: Motor Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric LE1D18Q7 Teknik Veri Föyü (PDF)
Schneider Electric LE1D18Q7 TeSys LE Enclosed Starter 18A 380VAC. Technical specifications of this model: Rated Current: 18A Series: TeSys LE
| Rated Current | 18 A |
|---|---|
| Series | TeSys LE |
| Product Type | Muhafazalı DOL yolverici |
| Device Application | Standard |
| Utilization Category | AC-3 |
| Device Arrangement | Termal aşırı load rölesi ayrı ayrı sipariş edilmiş; Kontaktör |
| Control Type | Açma/kapama butonu başlatma yeşil I; Açma/kapama butonu durdurma/sıfırlama kırmızı O |
| Rated Control Circuit Voltage (Uc) | 380 V AC 50/60 Hz |
| Number of Cable Entries | 2 kablo girişi: ISO20 üst; 2 kablo girişi: ISO25 üst; 2 kablo girişi: ISO20 alt; 2 kablo girişi: ISO25 alt |
| Width | 101 mm |
| Height | 201 mm |
| Depth | 153.5 mm |
| Product Weight | 1.015 kg |
| Standards | IEC 60947-4-1 |
| Certifications | CB Şeması; CE; UKCA |
| IP Rating | IP65 |
| IK Impact Protection | IK07 (IEC 60529) |
| Operating Ambient Temperature | -5…40 °C |
| Material | Polikarbonat |
| Environmental Conditions | Standart ortam |
