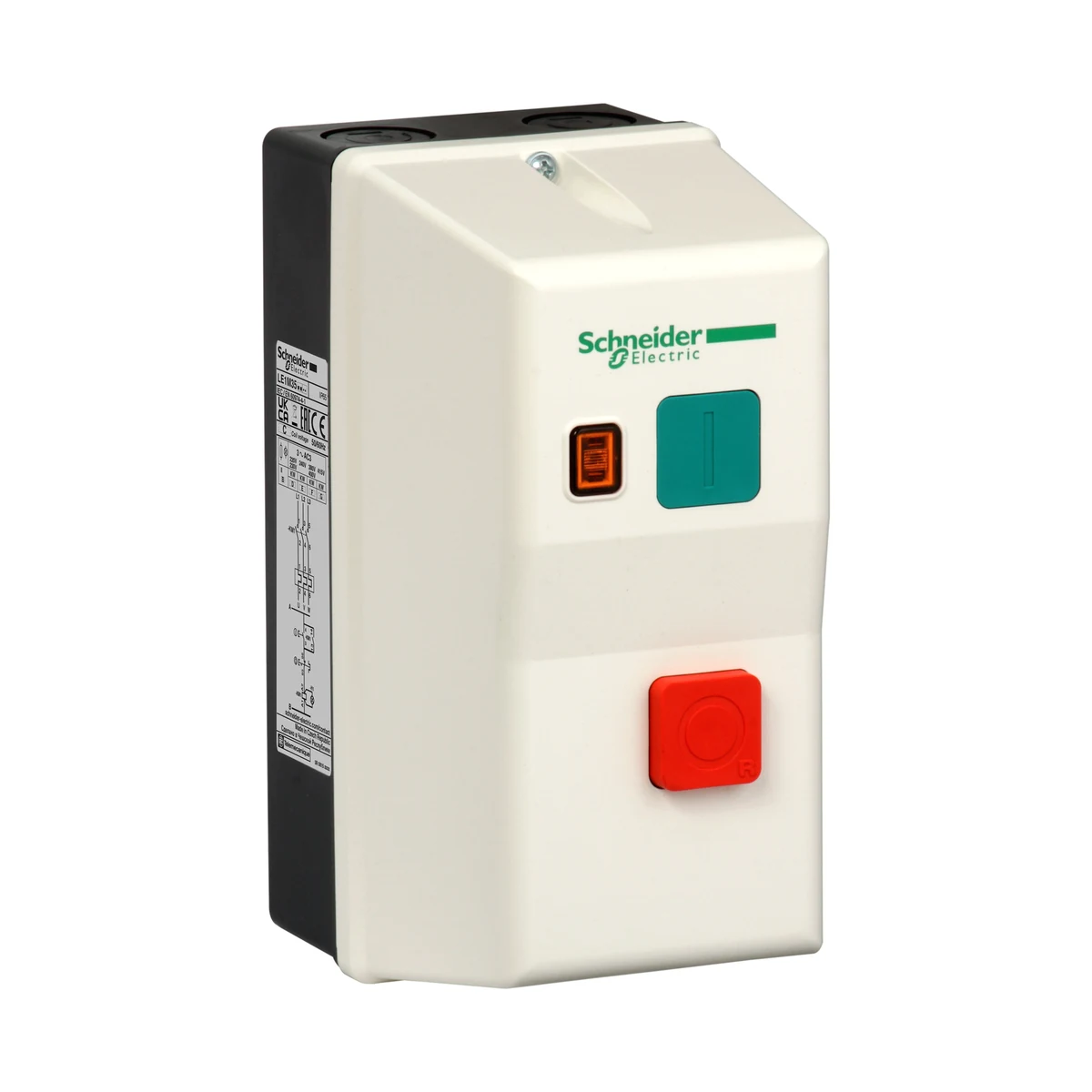

Schneider Electric LE1M35Q710 TeSys LE Enclosed Starter 2.6-3.7A 380VAC
- Brand: Schneider Electric
- SKU: LE1M35Q710
- MPN: LE1M35Q710
- Price: 5765.69 TRY + VAT · incl. VAT 6918.83 TRY
- Availability: Made to order
- Motor Starters
- Schneider Electric Motor Starters
- Selection guide: Motor Starters Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric LE1M35Q710 Teknik Veri Föyü (PDF)
Schneider Electric LE1M35Q710 TeSys LE Enclosed Starter 2.6-3.7A 380VAC. Technical specifications of this model: Series: TeSys LE Current Setting Range: 2.6-3.7A
| Current Setting Range | 2.6–3.7 A |
|---|---|
| Series | TeSys LE |
| Product Type | Muhafazalı DOL yolverici |
| Device Application | Standard |
| Utilization Category | AC-3 |
| Device Arrangement | Kontaktör; Topraklama terminali; Nötr terminal; Termal aşırı load rölesi |
| Thermal current setting range | 2.6–3.7 A |
| Motor Power (kW) | 0,55 kW @ 240 V AC 50/60 Hz; 1,5 kW @ 415 V AC 50/60 Hz; 0,55 kW @ 220/230 V AC 50/60 Hz; 1,5 kW @ 380/400 V AC 50/60 Hz |
| Rated Control Circuit Voltage (Uc) | 380 V AC 50/60 Hz |
| Control Type | Açma/kapama butonu başlatma yeşil I; Açma/kapama butonu durdurma/sıfırlama kırmızı O |
| Local Signalling | Çalışıyor: LED (sarı) |
| Width | 78 mm |
| Height | 160 mm |
| Depth | 108 mm |
| Product Weight | 0.6 kg |
| Material | ABS (akrilonitril butadiyen stiren) |
| IP Rating | IP65 |
| Standards | IEC 60947-4-1 |
| Operating Ambient Temperature | -5…40 °C |
| Environmental Conditions | Standart ortam |
| Certifications | UKCA |
