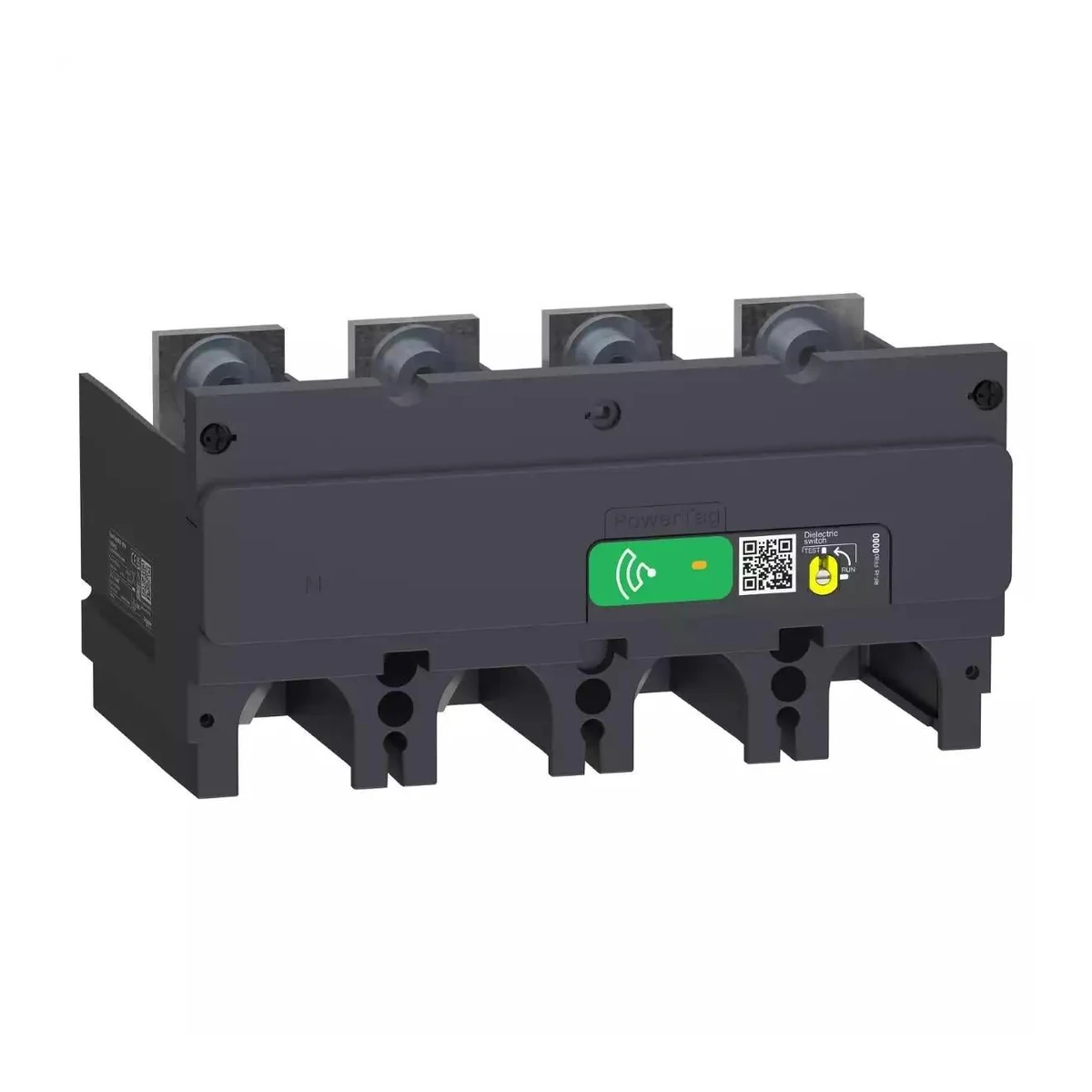

Schneider Electric LV434021 PowerTag NSX Energy M250 3P+N
- Brand: Schneider Electric
- SKU: LV434021
- MPN: LV434021
- Price: 45258.16 TRY + VAT · incl. VAT 54309.79 TRY
- Availability: Made to order
- Electric Energy Meters
- Selection guide: What Is an Electricity Meter? Energy Meter Selection Guide
- Schneider Electric LV434021 Teknik Veri Föyü (PDF)
Schneider Electric LV434021 PowerTag NSX Energy M250 3P+N.
| Series | PowerLogic |
|---|---|
| Product Type | Enerji sensörü |
| Pole Arrangement | 3P+N |
| Maximum Current (Imax) | 250 A |
| Basic Current (Ib) | 40 A |
| Starting Current | 160 mA |
| Saturation Current | 500 A |
| Application | Adım; Aşırı load alarmı; Güç faktörü; load izleme; Devre izleme |
| Measurement Type | Aktif ve reaktif enerji; Aktif ve reaktif güç; Görünen güç; Akım; Gerilim; Güç faktörü |
| Mounting Position | Alt |
| Mounting Support | Devre kesicide |
| Connection Range | 35 mm |
| Intended Field of Application | Pano |
| Transmission Medium | Radyo frekansı 2,4…2,4835 GHz (IEEE 802.15.4 (11…26)< 5 ms) |
| Maximum Emission Power | 10 mW |
| Mounting Method | Cıvatalı |
| Tightening Torque | 10 N.M |
| Supply Voltage | 230 V AC, +/- %20, faz ve nötr arasında; 400 V AC, +/- %20, fazlar arasında |
| Mains Frequency | 50 Hz; 60 Hz |
| Maximum Power Consumption | 3.7 VA |
| Standards | IEC 61557-12; IEC 61010-1; ETSI EN 301 489-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328 |
| Certifications | IEC; DNV Marine |
| Height | 57 mm |
| Width | 140 mm |
| Depth | 86 mm |
| Product Weight | 300 g |
| Color | Koyu gri (RAL 7016) |
| Quality Labels | CE |
| Operating Altitude | 0–2000 m |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
| Overvoltage category | IV (IEC 61010-1) |
| Measurement Category | Kategori III (IEC 61010-2-030) |
| IP Rating | IP20 |
| IK Impact Protection | IK07 (IEC 60068-2-75 test Ehb) |
| Pollution Degree | 3 |
| Relative Humidity | 0…95 % @ 55 °C (IEC 60721-3-3) |
| Vibration Resistance | 3M4 (IEC 60721-3-3) |
| Environmental Conditions | İç mekan kullanımı |
