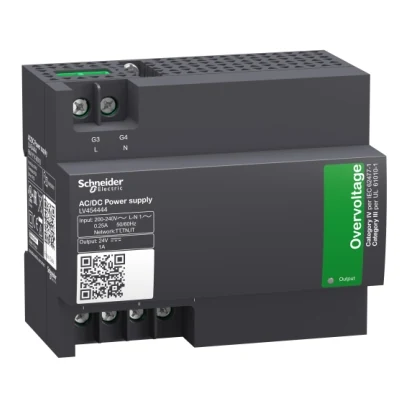

Schneider Electric LV454444 24 V DC External Power Supply (200/240V AC)
- Brand: Schneider Electric
- SKU: LV454444
- MPN: LV454444
- Price: 22073.08 TRY + VAT · incl. VAT 26487.70 TRY
- Availability: Made to order
- DIN Rail Power Supplies
- Schneider Electric DIN Rail Power Supplies
- Selection guide: DIN Rail Power Supplies Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric LV454444 Teknik Veri Föyü (PDF)
Schneider Electric LV454444 24 V DC External Power Supply (200/240V AC).
| Product Type | Harici güç kaynağı modülü |
|---|---|
| Device Application | Güç kaynağı |
| Accessory Type | Kontrol birimleri aksesuarları; Açma birimi aksesuarları |
| Release Type | Micrologic |
| Power Supply Type | Düzenlenmiş anahtar modu |
| Rated Control Supply Voltage (Us) | 200…240 V AC 50/60 Hz tolerans: +10 % -15 % |
| Input Voltage Limits | 170…264 V AC @ 47,5…63 Hz |
| Output Voltage | 24 V DC +/-5 % |
| Overvoltage category | IV (IEC 62477-1); III (UL 61010-1) |
| Power Supply Output Current | 1 A |
| Rated Power (W) | 24 W |
| Inrush Current | 20 A 2 ms |
| Power Loss (W) | 4.2 W |
| Hold-up Time | >= 20 ms 200…240 V AC |
| Permissible Transient Current | 1.5 A (200 ms) |
| Connection Terminals | Vidalı tip terminaller, connection capacity: 2 x 0,2…2 x 1,5 mm² AWG 24...AWG 16; Vidalı tip terminaller, connection capacity: 1 x 0.2…1 x 4 mm² AWG 24...AWG 12 |
| Mounting Support | 35 x 7,5 mm simetrik DIN rayı |
| Operating Position | Yatay |
| Operating Altitude | 0–2000 m |
| Status LED | 1 LED (yeşil) çıkış gerilimi |
| Height | 90 mm |
| Width | 108 mm |
| Depth | 67.5 mm |
| Standards | UL 61010-1; IEC 62477-1 |
| Conformity Markings | EAC; CE; UL |
| Environmental Conditions | EMC (EN/IEC 61000-6-2); EMC (EN/IEC 61000-6-3); Güvenlik (IEC 62477-1); Güvenlik (SELV) |
| IP Rating | IP4X (EN/IEC 60529 (ön yüz)); IP2X (EN/IEC 60529 (connection terminals)); IP3x (EN/IEC 60529 (muhafaza)) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
| Relative Humidity | 0…95 % çalışma sırasında; 0…95 % Storage sırasında |
| Dielectric Strength | 3000 V giriş ve topraklama arasında; 3000 V giriş ve çıkış arasında; 1500 V çıkış ve topraklama arasında |
