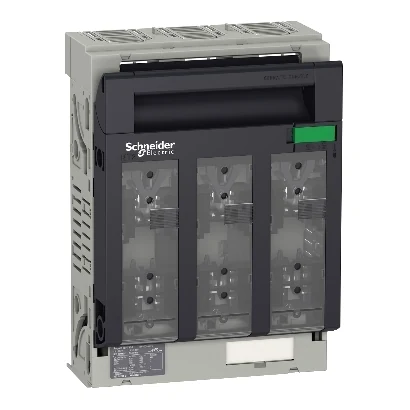

Schneider Electric LV480806 ISFT400 Fused Switch Fixed with M10 Terminals
- Brand: Schneider Electric
- SKU: LV480806
- MPN: LV480806
- Price: 22017.48 TRY + VAT · incl. VAT 26420.98 TRY
- Availability: Made to order
- Switch Accessories
- Schneider Electric Switch Accessories
- Selection guide: Switch and Breaker Accessories Selection Guide
- Schneider Electric LV480806 Teknik Veri Föyü (PDF)
Schneider Electric LV480806 ISFT400 Fixed Fused Switch with M10 Terminals.
| Series | FuPacT |
|---|---|
| Product Type | Sigortalı load ayırıcı |
| Device Application | Ekipman koruma, izleme ve kontrol; Dağıtım |
| Signalling Function | Ayrı sigorta monitörü |
| Pole Arrangement | 3P |
| Number of Fuse Carriers | 3 |
| Fuse Type | DIN |
| Fuse Size | NH2 |
| Suitable for Isolation | Yes (EN/IEC 60947-3) |
| Apparent Breaking | Yes |
| Contact Position Indication | Yes |
| Conventional Enclosed Thermal Current (Ithe) | 400 A @ 40 °C, sigorta basina güç dagilimi: 34 W |
| Maximum Power Loss per Pole | 44 W |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz; 440 V DC; 800 V AC 50/60 Hz AC-20; 800 V DC DC-20 |
| Rated Insulation Voltage (Ui) | 1000 V AC 50/60 Hz; 1000 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Short-time Withstand Current Low Voltage (Icw) | 15,2 kA için 1 s |
| Rated Duty | Kesintisiz |
| Control Type | Sigorta taşıyıcı kolu |
| Locking Option | Kurşun mühür |
| Mounting Position | Dikey; Yatay |
| Mounting Type | Fixed |
| Mounting Support | Backplate |
| Contact Operation Type | Tek mola |
| Mechanical Endurance | 1000 cycles |
| Electrical Endurance | AC-21B: 200 cycles 690 V AC 50/60 Hz; AC-22B: 200 cycles 690 V AC 50/60 Hz; AC-23B: 200 cycles 415 V AC 50/60 Hz |
| Connection Terminals | M10 terminalleri |
| Tightening Torque | 20 N.m için terminal |
| Width | 210 mm |
| Height | 306 mm |
| Depth | 130 mm |
| Product Weight | 2 kg |
| Standards | EN/IEC 60947-1; EN/IEC 60947-3 |
| Certifications | CE; CCC; EAC |
| Electric Shock Protection Class | Sınıf II ön yüz |
| IP Rating | IP3x ön yüz: (IEC 60529) |
| IK Impact Protection | IK07 (EN 50102) |
| Pollution Degree | 3 (IEC 60947) |
| Operating Ambient Temperature | -20…70 °C |
| Storage Temperature | -50…85 °C |
