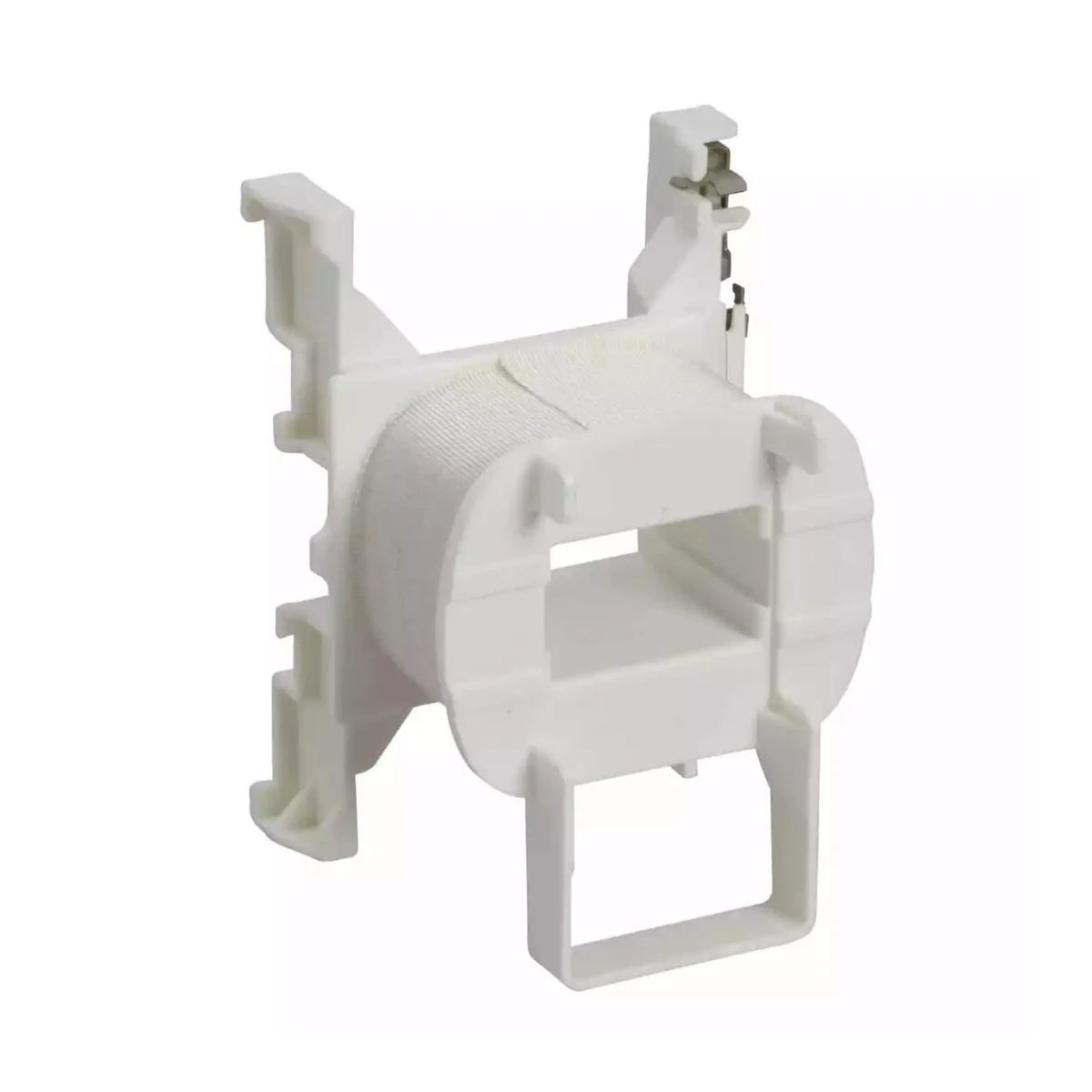

Schneider Electric LXD1F7 TeSys Deca Contactor Coil 9-38A 110VAC
- Brand: Schneider Electric
- SKU: LXD1F7
- MPN: LXD1F7
- Price: 1000.80 TRY + VAT · incl. VAT 1200.96 TRY
- Availability: Made to order
- Contactor Accessories
- Schneider Electric Contactor Accessories
- Selection guide: Contactor Accessories Selection Guide
- Schneider Electric LXD1F7 Teknik Veri Föyü (PDF)
Schneider Electric LXD1F7 TeSys Deca Contactor Coil 9-38A 110VAC. Technical specifications of this model: Coil Voltage: 110VAC Series: TeSys Deca
| Coil Voltage | 110 V AC |
|---|---|
| Series | TeSys Deca |
| Product Type | Kontaktör bobini |
| Control Circuit Type | AC @ 50/60 Hz |
| Rated Control Circuit Voltage (Uc) | 110 V AC 50/60 Hz |
| Average Resistance | 124,1 Ohm @ 20 °C |
| Closed-Circuit Inductance | 4,6 H |
| Compatible Products | LC1DT20...DT40; LC1D09...D38; CAD |
| Mechanical Endurance | 15 Mcycles |
| Maximum Operating Rate (cycles/h) | 3600 cyc/h @ <60 °C |
| Coil Technology | Yerleşik süpresör modülü olmadan |
| Control Circuit Voltage Limits | Düşme: 0,3…0,6 Uc at 50/60 Hz (at <60 °C); Çalışma: 0,8…1,1 Uc at 50 Hz (at <60 °C); Çalışma: 0,85…1,1 Uc at 60 Hz (at <60 °C) |
| Inrush Power (VA) | 70 VA 60 Hz cos phi 0,75 (at 20 °C); 70 VA 50 Hz cos phi 0,75 (at 20 °C) |
| Hold-in Power Consumption (VA) | 7,5 VA 60 Hz cos phi 0,3 (at 20 °C); 7 VA 50 Hz cos phi 0,3 (at 20 °C) |
| Heat Dissipation | 2…3 W @ 50/60 Hz |
| Operating Ambient Temperature | -5…60 °C |
| Product Weight | 0.07 kg |
